Power Management Design Center
Accelerate your design
Optimize your design for performance and power efficiency
The Power Management Design Center is one of the 4 design components available via ST’s eDesignSuite - a free, comprehensive online software tool that helps you quickly find the best solution for your specific application.

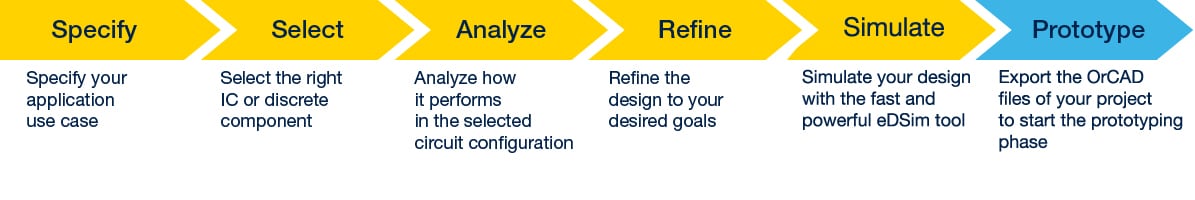

Covering all the design phases, from specification to prototype, the Power Management Design Center helps designers accelerate the development process of switch mode power converters in a variety of topologies and configurations.
How does it work?
Choose design tool
Power Management Design Center
Power Supply Design Tool
• SMPS design, by topology, by type and by product
• PFC design with analog and digitial control
• Supports various PCB configurations
Choose type: DC/DC AC/DC Solar Battery Charger
Power Management Design Center

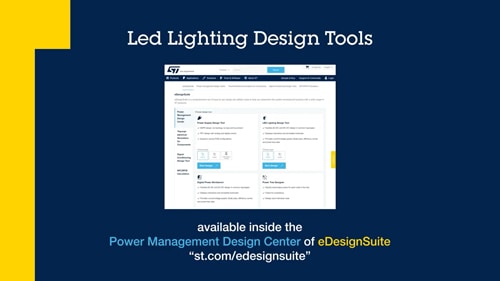

LED Lighting Design Tool
• Handles AC-DC and DC-DC design in common topologies
• Displays interactive and annotated schematic
• Provides current/voltage graphs, Bode plots, efficiency curves and power-loss data
Choose type: DC/DC AC/DC
Power Management Design Center
Digital Power Workbench
• Provides a step-by-step optimized design of power section and control loop
• Generates the STM32Cube embedded software package for custom applications and allows firmware project generation, compatible with multiple STM32 IDEs
Power Management Design Center
Power Tree Designer
• Specify input/output power for each node in the tree
• Check for consistency
• Design each individual node
Power Supply
Power Supply
With the Power Supply design tool, you can choose between the component categories: DC/DC converters, AC/DC converters, and solar battery chargers.
Digital Power
Digital Power
The Digital Power Workbench enables you to accelerate the development of digital power converters. Users can evaluate, analyze and customize several topologies design with full digital control through the STM32G4 microcontroller.
LED Lighting
LED Lighting
Our on-line LED Lighting design tool helps designers accelerate the engineering development process for AC-DC and DC-DC switch-mode LED drivers based on a large - and growing - number of ICs and Discrete from our broad portfolio in a variety of topologies.
Power Tree Designer
The online Power Tree Designer supports engineers working on multirail DC supply applications to power various system functional blocks. Set the main DC bus specifications and build the power conversion architecture using different modules to generate the different supply voltages through LDOs or DC-DC converters in custom or eDesignSuite stages. You can also evaluate the efficiency of a single stage or a global branch based on ST products.
