X-NUCLEO-IOD02A1

製品概要

概要

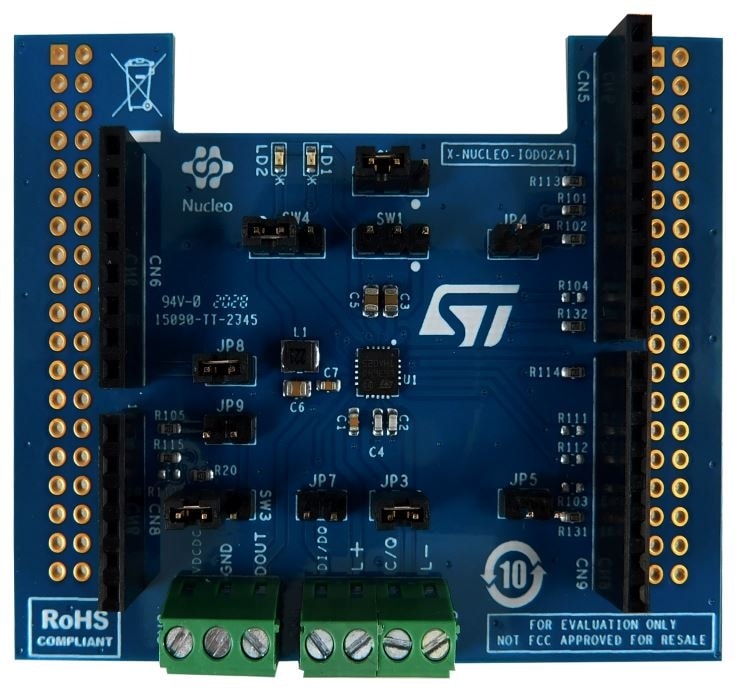

The X-NUCLEO-IOD02A1 expansion board for STM32 Nucleo is based on the L6364Q dual channel SIO and IO-Link PHY device transceiver embedding 50 mA 3.3 V and 5.0 V voltage regulators, DC-DC converter and M-sequence management.

The expansion board provides an affordable and easy-to-use solution for the development of SIO and IO-Link industrial sensor applications, letting you easily evaluate the L6364Q communication features and robustness.

The X-NUCLEO-IOD02A1 communicates with the STM32 controller via SPI and GPIO pins and it is compatible with the Arduino UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors (when connected to a NUCLEO-L073RZ or NUCLEO-G071RB development board).

Communication via IO-Link can be performed in either Multi-byte and Single-byte modes with SPI control of IC configuration and bidirectional sensor data transmission, or in Transparent mode with SPI control of IC configuration and UART interfacing for bidirectional sensor data transmission.

The switches on the X-NUCLEO-IOD02A1 conveniently allow you to configure L6364Q and expansion board settings such as transmission mode and DC-DC converter enable/disable according to application requirements.

You can also perform evaluation of comprehensive industrial sensor modules by connecting the X-NUCLEO-IOD02A1 to the X-NUCLEO-IKS02A1 sensor shield.

特徴
Based on the L6364Q IO-Link device dual transceiver in QFN package with the following main characteristics:

2-channel (CQ and DIO) IO-Link PHY layer

IO-Link DLL (M-sequence handler and checksum)

Wake-up detection

Interrupt diagnostic pin

SPI and UART interfaces

50 mA 3.3 V and 5.0 V linear regulators

50 mA adjustable (5.0 ÷ 10.8 V) buck converter

Overload protection with adjustable intervention threshold

Overheating protection with adjustable shutdown threshold

Full reverse polarity on process side

Ground and V_CC wire break protections

QFN-20L (4 x 4 x 0.9 mm) package

5 to 35 V operating voltage range

Red LED and green LED for status diagnostics

Radiated Emissions (EM Fields 30 MHz-1 GHz) < 40dB µV/m

Immunity to conducted disturbance (150 kHz-80 MHz) ≤ 10 V

Immunity to RF EM Fields (80 MHz-1 GHz) ≤ 10 V/m

Immunity to RF EM Fields (1 GHz-2.7 GHz) ≤ 3 V/m
Immunity to SURGE pulse (500 Ohm coupling) ≤ ± 1.2 kV

Immunity to ESD contact/air ≤ ±3 kV

Immunity to BURST noise ≤ ±1 kV

Compatible with STM32 Nucleo development boards

Equipped with Arduino UNO R3 connectors

RoHS and WEEE compliant
