Product overview
Description

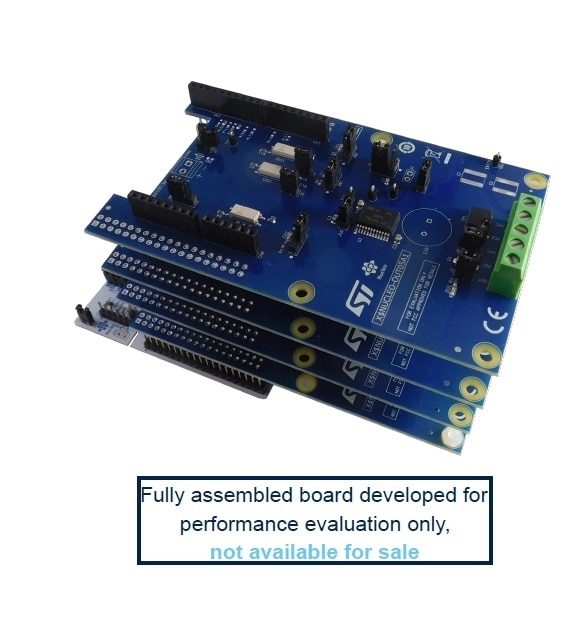

The STDES-OUT05DO4 is an application example for a quad-channel digital output module based on the physical stack through the Arduino® connectors of up to four X-NUCLEO-OUT05A1 on a NUCLEO-F401RE running STSW-OUT5D4F4 (or on a NUCLEO-G431RB running STSW-OUT5D4G4).
Each X-NUCLEO-OUT05A1 mounts an IPS1025H and offers a single output channel designed to drive industrial loads with a current capability of up to 2.5 A. The proper configuration of few resistors and jumpers enables the input signal driving and diagnostic signals monitoring of the stacked boards. The stacked boards share the same supply rail by paralleling the connection on CN1[4, 5] (supply rail +) and CN1[3] (ground rail).
The STSW-OUT5D4F4 companion software runs on the NUCLEO-F401RE and enables the control of up to four stacked X-NUCLEO-OUT05A1 and the communication with the STSW-IFAPGUI.
The STSW-OUT5D4G4, which is the companion software designed to run on the NUCLEO-G431RB, ensures the same functionalities and interfacing capabilities.
The STDES-OUT05DO4 is a fully assembled kit developed for performance evaluation only, not available for sale.
-
All features
- 8 to 33 V/0 to 2.5 A per-channel operating voltage range
- Extended voltage operating range (all J3 open) up to 60 V/2.5 A per channel
- Green LEDs for output on/off status
- Red LEDs for per-channel diagnostic (overload and overheating)
- 5 kV galvanic isolation
- Supply rail reverse polarity protection
- EMC compliance with IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-8
- RoHS and WEEE compliant
