An ESD array designed for high-speed differential lines, the HSP181-2W3Y protects the signal integrity of USB 2.0 or NFC signals.
The HSP181-2W3Y simplifies the design and layout of infotainment PCB by providing a single-package ESD and ISO7637 protection compatible with car markers 18V short-to-battery requirements.
Key features
- 18 V VRM compatible with all passenger car battery voltages
- Low clamping voltage for efficient protection
- Ultra-low leakage current to reduce power consumption
- 12 kV ESD robustness
- AEC Q101 qualified & PPAP capable
Application examples
USB 2.0 lines in vehicles Recommended resources

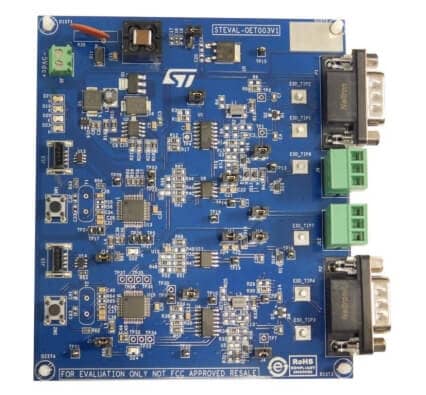

Discover STEVAL-OET003V1 which is designed to provide an easy way to evaluate the robustness of ESD diodes developed for the automotive environment.

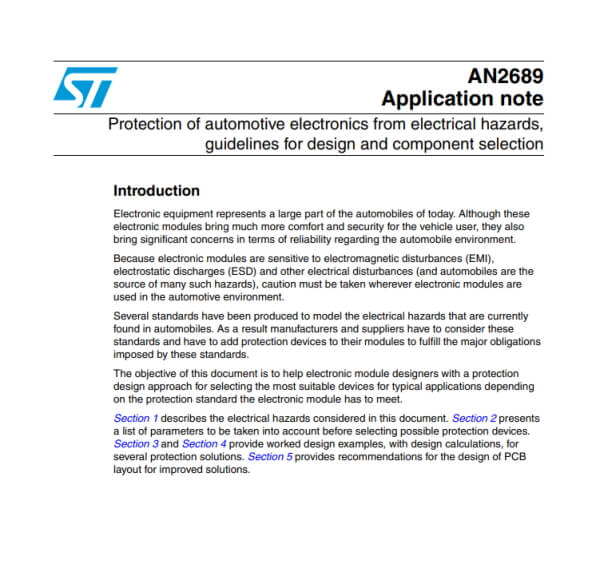

This application note provides electronic module designers with a protection design approach for selecting the most suitable devices for typical applications depending on the protection standard the electronic module has to meet.

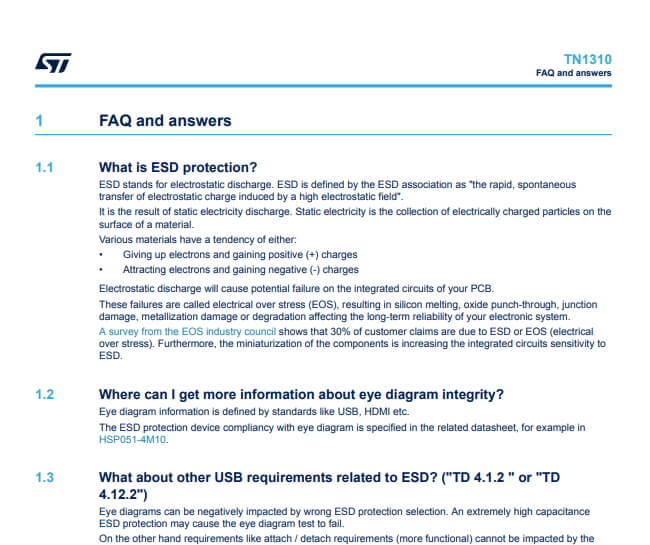

EMC experts answer the most common questions about ensuring system immunity against electrostatic discharges and provide valuable insights on improving your designs.
