X-NUCLEO-NFC12A1

Target
Save to myST

NFC card reader expansion board based on ST25R300 for STM32 Nucleos

Download databrief
Overview

Product overview

Description

Description

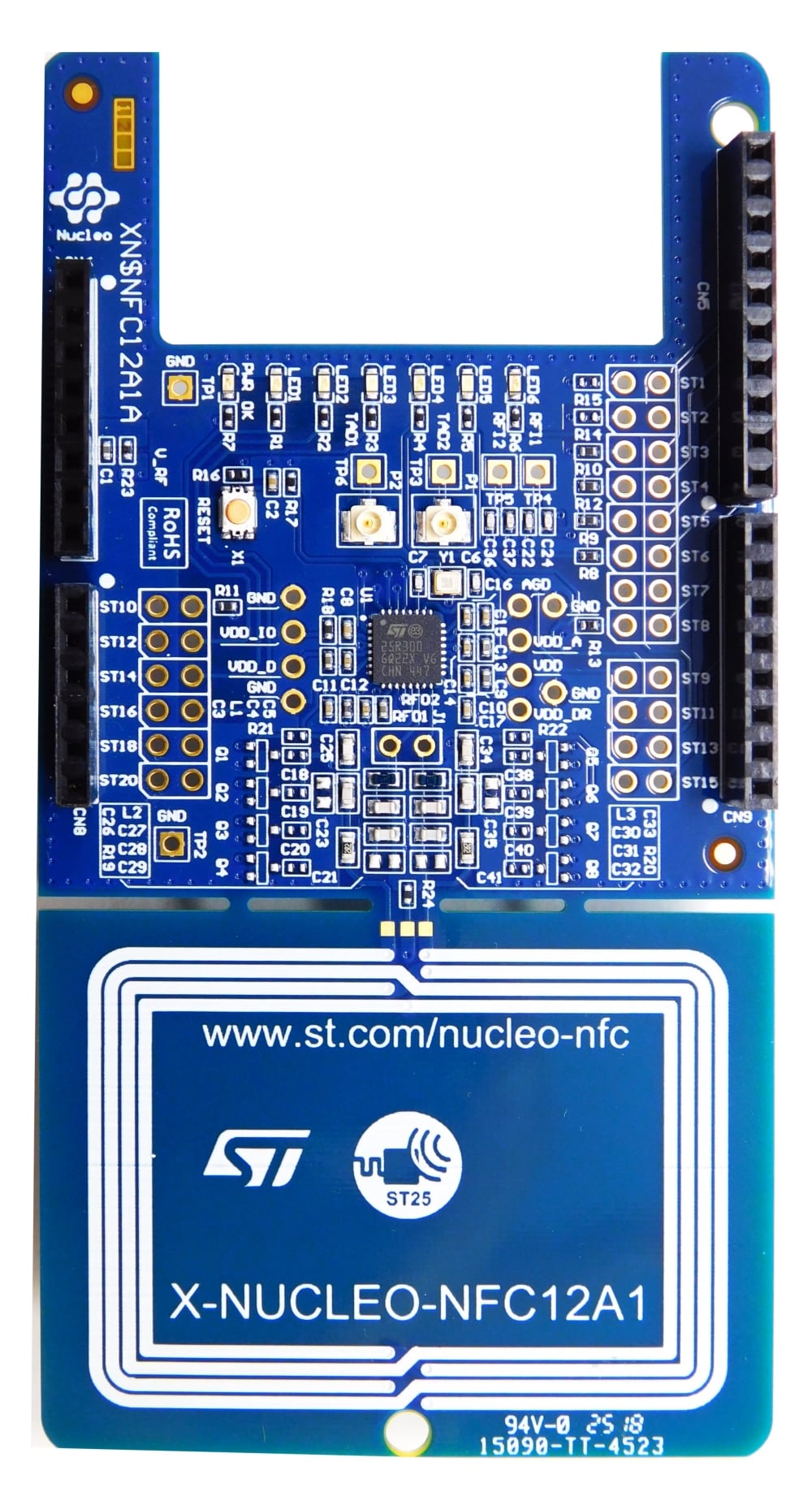

The X-NUCLEO-NFC12A1 NFC card reader expansion board is based on the ST25R300 device.

The expansion board is configured to support all five NFC Forum tag types in reader mode.

The ST25R300 manages frame coding and decoding in reader mode for standard applications.

It supports ISO/IEC 14443 type A/B and ISO/IEC 15693 (single subcarrier only) and ISO/IEC 18092 communication protocols as well as the detection, reading and writing of NFC Forum type 1, 2, 3, 4, and 5 tags.

Integrated HF reader/NFC initiator/NFC target IC with an antenna etched on the PCB and the related tuning circuit.

  • All features

    • On-board NFC card reader and host card emulation IC: ST25R300
    • NFC Forum NFC-A, NFC-B, NFC-F and NFC-V poller
    • NFC Forum NFC-A, NFC-F listener
    • 13.56 MHz inductive antenna, 47 mm x 34 mm, four turns, etched on PCB and associated tuning circuit
    • Possibility of driving two antennas in single-ended configuration
    • Six general-purpose LEDs
    • Equipped with Arduino UNO R3 connector
    • Free comprehensive development firmware library compatible with STM32Cube and samples for ST25R300
    • FCC certified
    • RoHS and WEEE compliant
