X-NUCLEO-60K1A1

Product overview

Description

The X-NUCLEO-60K1A1 is a kit composed of two expansion boards, an X-NUCLEO-60L1A1 expansion board, and an X-NUCLEO-60R1A1 expansion board, working as a pair, which can be plugged onto most STM32 Nucleo board equipped with the Arduino R3 connectors. It provides a complete evaluation kit that allows you to learn, evaluate, and develop applications based on the ST60A3H1 transceiver, for contactless connectivity up to 480 Mbit/s.

The ST60A3H1 is a full RF transceiver with a dual-linear-polarization integrated antenna, operating in half-duplex mode. It provides an optimized solution for a high-speed, low-power, short-range point to point 60 GHz RF link.

The X-NUCLEO-60L1A1 expansion board, which hosts an ST60A3H1 configured as Local is the only board needing to be plugged onto an STM32 Nucleo development board (for example, NUCLEO-L476RG with ultralow power STM32 microcontroller). The other X-NUCLEO-60R1A1 expansion board, which hosts an ST60A3H1 configured as Remote is used in standalone. Any ST60A3H1 configuration is done from the X-NUCLEO-60L1A1 side.

All features

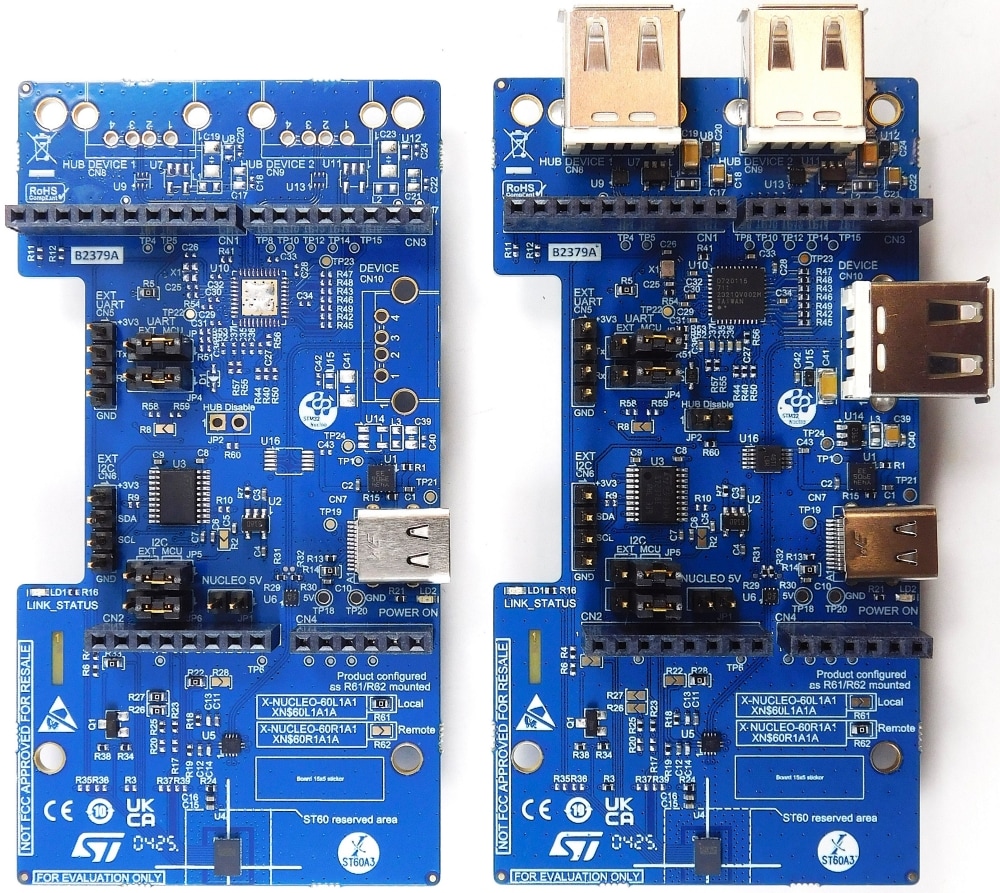

60 GHz V-band contactless connectivity transceiver expansion board kit, based on the ST60A3H1 for STM32 Nucleo. The X-NUCLEO-60K1A1 kit is composed of two boards:

X-NUCLEO-60L1A1 expansion board with an ST60A3H1 configured as Local

X-NUCLEO-60R1A1 expansion board with an ST60A3H1 configured as Remote

Range up to 3 cm

eUSB2, UART, GPIO, or I²C RF tunneling

Embedded eUSB2 repeater

Bypassable USB2 hub on Remote ST60A3H1 side

Compatible with most STM32 Nucleo boards

Equipped with Arduino® UNO R3 connector

Free comprehensive development firmware library and examples for ST60A3H1, compatible with STM32Cube

ETSI certified

RoHS, CE, and UKCA compliant
Read more Read less
