Product overview
Description
The STSW-OUT11G4 firmware runs on the NUCLEO-G431RB development board and allows controlling the X-NUCLEO-OUT11A1 or X-NUCLEO-OUT13A1 expansion boards using the STSW-IFAPGUI graphical user interface.
The STSW-OUT11G4 contains the software routines that enable the USB-based communication between the NUCLEO-G431RB and the system where the STSW-IFAPGUI runs, and the control of the X-NUCLEO-OUT11A1 or X-NUCLEO-OUT13A1.
The firmware can control a single expansion board (X-NUCLEO-OUT11A1 or X-NUCLEO-OUT13A1).
The STSW-IFAPGUI is based on a common engine and several plug-ins designed to communicate through the USB connection with the application layer running on the NUCLEO-G431RB development board stacked with the expansion board.
-
All features

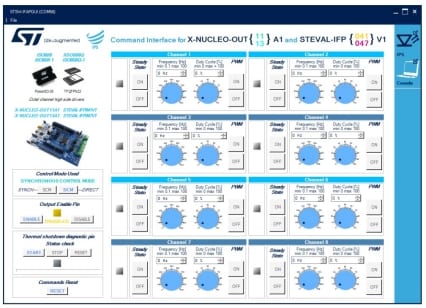

- Full control of the X-NUCLEO-OUT11A1 and X-NUCLEO-OUT13A1 expansion boards via the STSW-IFAPGUI graphical user interface
- Control of:
- output channel switching frequency and duty cycle configuration
- visualization of diagnostic signal (common overtemperature/communication error)
- both Direct Control Mode and Synchronous Control Mode management
