Product overview
Description

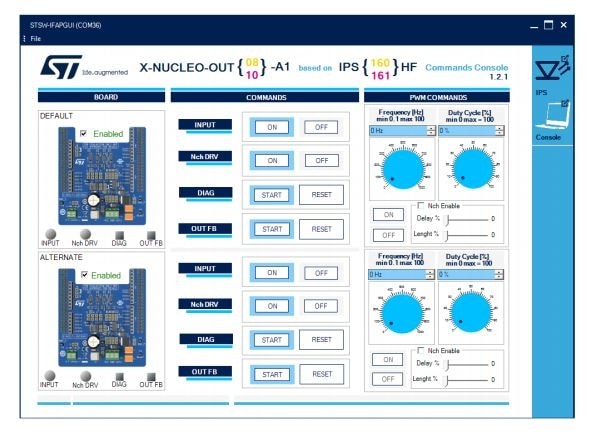

The STSW-OUT8G4 firmware runs on the NUCLEO-G431RB development board when connected to the X-NUCLEO-OUT08A1 or X-NUCLEO-OUT10A1 expansion boards using the STSW-IFAPGUI graphical user interface.
The STSW-OUT8G4 contains the software routines to allow full control of X-NUCLEO-OUT08A1 and X-NUCLEO-OUT10A1 via the STSW-IFAPGUI.
The firmware can control the single expansion board or two stacked shields (two X-NUCLEO-OUT08A1 or two X-NUCLEO-OUT10A1 expansion boards, or one of each).
The STSW-IFAPGUI is based on a common engine and several plug-ins designed to communicate with the application layer running on the microcontroller driving the shield board.
-
All features
- Full control of the X-NUCLEO-OUT08A1 and X-NUCLEO-OUT10A1 expansion boards via the STSW-IFAPGUI graphical user interface
- Control of:
- single channel applications
- dual channel applications
- output fast discharge
- output on/off status
- Output channel switching frequency and duty cycle configuration
- Visualization of diagnostic signals (open load, cut-off and thermal protection)
