Product overview
Description

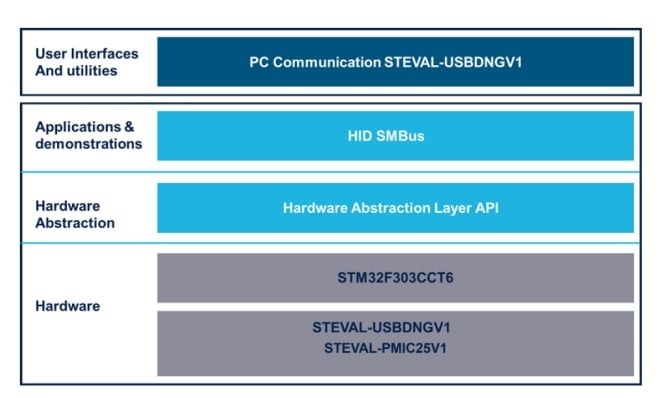

The STSW-USBDNGFW firmware implementation is based on the STM32F303CC microcontroller, allowing the data bridge communication between graphical user interface running on a PC and PMBUS/I2C based devices such as eFuses family, PMIC25 family and multiphase voltage regulator family.
The firmware has been designed for the STEVAL-USBDNGV1 USB dongle available inside the STEVAL-PMIC25V1 to support PMBus rev 1.3.1 specification (part I and part II), I2C specification except 10bit address management.
-
All features
- Read Byte/Word/32/Block
- Write Byte/Word/32/Block
- PEC
- 7-bit addressable device
- Group command
- Zone read protocol
- Zone write protocol
