VN7003ALH Evaluation Board

Download databrief
Order Direct
Overview

Product overview

Description

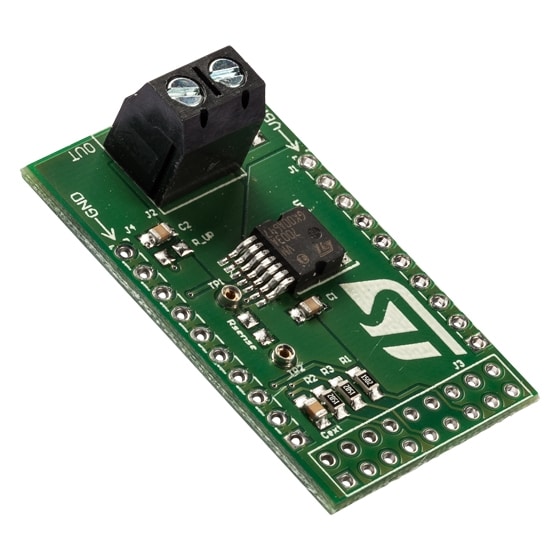

This board provides you an easy way to connect STMicroelectronics®VIPower®M0-7 technology into your existing system.

  • All features

    • Simple single IC application board dedicated for VN7003ALH
    • Provides electrical connectivity and thermal heat-sinking for easy prototyping
    • General device features
      • Single channel smart high-side driver with CurrentSense analog feedback
      • Very low standby current
      • Compatible with 3 V and 5 V CMOS outputs
      • Extreme low voltage operation for deep cold cranking applications (compliant with LV124, revision 2013)
    • Diagnostic functions
      • Dedicated high precision proportional load current sense
      • Overload and short to ground (power limitation) indication
      • Thermal shutdown indication
      • OFF-state open-load detection
      • Output short to VCC detection
    • Protections
      • Undervoltage shutdown
      • Overvoltage clamp
      • Load current limitation
      • Self limiting of fast thermal transients
      • Loss of ground and loss of VCC
      • Configurable latch-off on overtemperature or power limitation
      • Reverse battery
      • Electrostatic discharge protection
