EVAL-FDA803D

Active
Save to myST

EVAL-FDA803D evaluation board for FDA803D

Download databrief
Overview

Product overview

Description

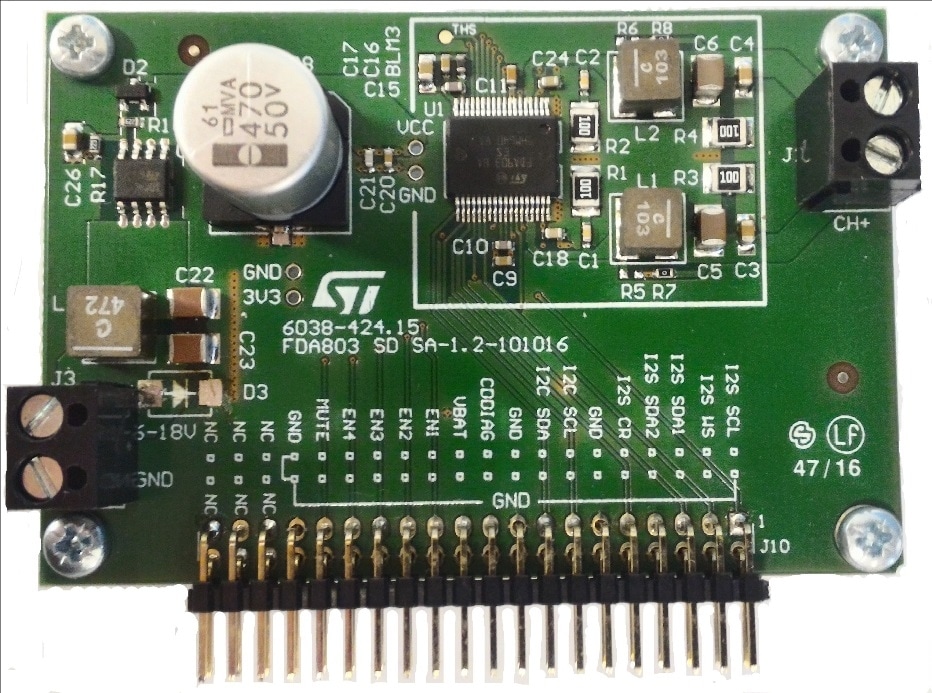

EVAL-FDA803D and EVAL-FDA903D are evaluation boards for automotive digital class-D power amplifiers FDA803D and FDA903D in PowerSSO-36 slug-down package.

  • All features

    • Digital input, class-D output
    • Single audio channels
    • I2S bus with I2S and TDM compatibility
    • I2C bus
    • Full diagnostic
    • Compatible with FDA803D and FDA903D (PowerSSO-36 slug-down package)
    • Operating supply voltage from 3.3 V to 18 V (battery compatible)
