EVAL6207Q

Active
Save to myST

Dual full bridge with integrated PWM current controllers

Download databrief
Order Direct
Overview

Product overview

Description

Description

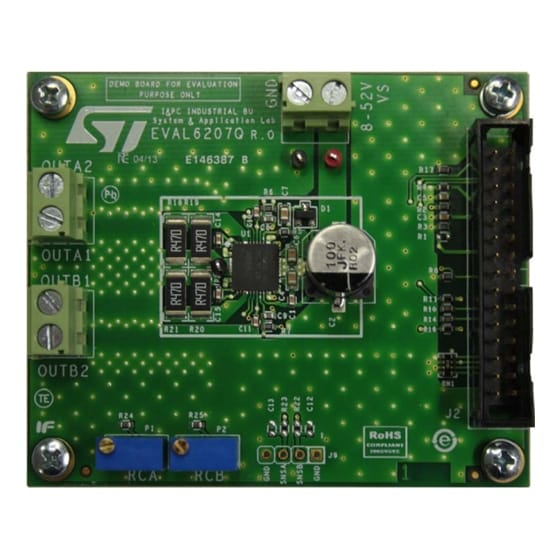

The EVAL6207Q is a dual full bridge driver board allowing the user to test the L6207Q functions.

The dual full bridges integrated into the L6207Q can be used to drive a single two phase stepper motor or up to four DC motors (unidirectional). The device also includes two independent constant OFF time PWM current controllers.

The board can be driven using the STEVAL-PCC009V2 communication board and the PractiSPINTM2 evaluation software.

  • All features

    • Voltage range from 8 V to 52 V
    • Phase current up to 2.5 Ar.m.s.
    • Adjustable constant tOFFPWM current control
    • Logic inputs 5 V / 3.3 V compliant
    • Small application footprint with high thermal performance
    • Suitable to be used in combination with PractiSPINTM2 software
