30 kW Vienna PFC rectifier reference design with digital control

Download databrief
Overview

Product overview

Description

Description

The STDES-30KWVRECT reference design introduces a complete digital power solution for high-power three-phase active front end (AFE) rectifier applications based on the three-level Vienna topology.

This platform achieves a peak efficiency of more than 98.5% by using the SCTWA90N65G2V-4 and the STPSC40H12C.

It features a fully digital control with the STM32G474RE mixed-signal high-performance microcontroller, providing the full control of the PF, DC voltage, and soft startup procedure.

The STDES-30KWVRECT achieves a low total harmonic distortion (less than 5% THD at full load) and a high-power factor (higher than 0.99 at full load), providing a high-bandwidth continuous conduction mode (CCM) current regulation.

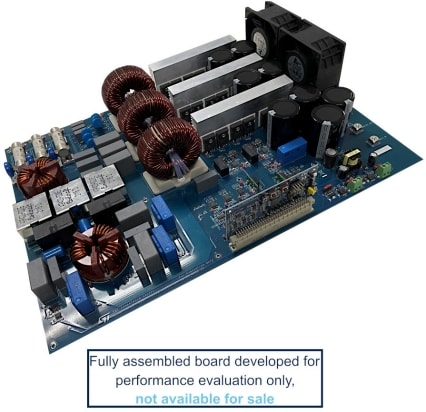

The STDES-30KWVRECT is a fully assembled kit developed for performance evaluation only, not available for sale.

  • All features

    • Three-phase, three-level AC-DC power converter:Nominal rate for DC voltage: 800 VNominal rate for AC voltage: 400 VMaximum power: 30 kWPower factor: >0.99Inrush current control and soft start-upTHD lower than 5% at nominal operation
    • Power section based on SiC MOSFETs and SiC diodes:High frequency operation (70 kHz)High efficiency: >98.5%Paralleled SiC MOSFETs for higher power with balanced sharing current Passive element weight and size reduction
    • Control section based on the STM32G474RE microcontroller:Control and monitoring interfaces: SWD–UART, I²C, and DACs64-pin digital power connector LED status as UIFour integrated high-performance op-amps for additional features
