Product overview
Description

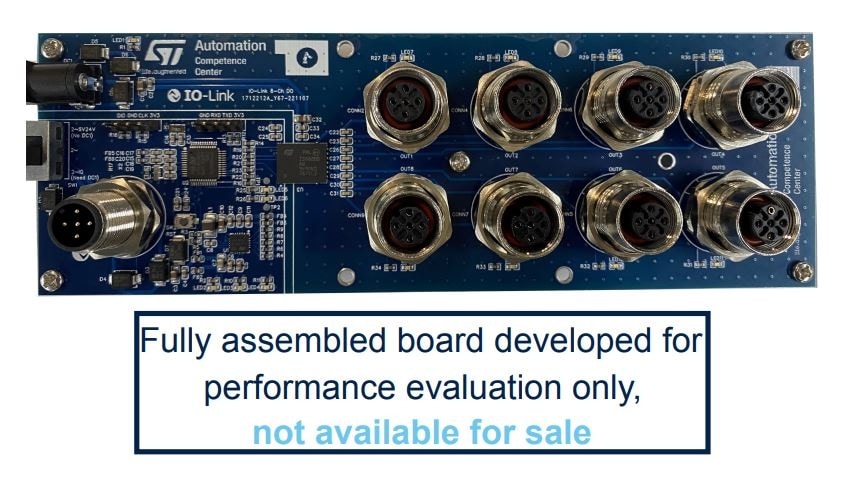

The STDES-8CHDINPUT board is designed with the L6364 as IO-Link device transceiver, low power STM32G071CB as main controller 6 kV isolated device to ensure a safer isolation.
The STDES-8CHDINPUT is a turnkey solution ready for industrialization.
With the use of SCLT3-8BQ7, the digital input current for each channel is limited.
A dedicated SWD 5-pin connector allows to program the microcontroller.
This STDES-8CHDINPUT reference design has to communicate with an IO-Link master board and a PC with an appropriated control GUI software. The IODD file for the STDES-8CHDINPUT is available.
-
All features
- Input DC voltage: 19-32 VDC (IO-Link VBus)
- IO-Link to 8-ch digital input
- Power supply voltage to external sensor 100mA/Ch
- 4-pin M12 standard industrial connector
- 5-pin M12 standard digital input connector
