STDES-8CHDOUTPT

Active
Save to myST

8-channel digital output L6364 IO-Link hub

Download databrief
Overview

Product overview

Description

The STDES-8CHDOUTPT reference design embeds the L6364Q the IO-Link device transceiver, the low power STM32G071RBT6 main controller, and the ISO8200AQ isolated device for industrial loads driving.

The STDES-8CHDOUTPT is a turnkey solution ready for industrialization.

The ISO8200AQ lets you drive up to eight industrial loads simultaneously, at a current rating of 0.7 A per channel and an embedded 4 kV isolation.

A dedicated SWD 5-pin connector allows programming the microcontroller.

To communicate with an IO-Link master board, this STDES-8CHDOUTPT reference design requires a PC with an appropriated control GUI software. The IODD file for the STDES-8CHDOUTPT is available.

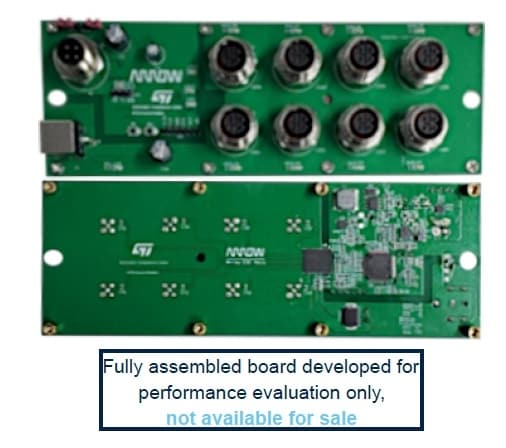

The STDES-8CHDOUTPT is a fully assembled kit developed for performance evaluation only, not available for sale.

  • All features

    • Input DC voltage: 19-32 VDC (IO-Link VBus)
    • IO-Link to 8-channel digital output
    • Digital output current limit: 0.7 A/ch
    • Full isolation protection between IO-Link and digital output
    • 4-pin M12 standard IO-Link connector
    • 5-pin M12 standard digital output connector
