STDES-ESP01

Active
Save to myST

ST1VAFE6AX and ST1VAFE3BX reference board supporting an electronic skin patch for cardio monitoring

Download databrief
Overview

Product overview

Description

Description

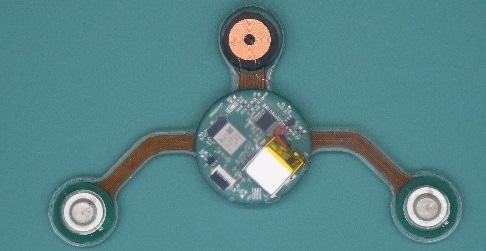

The STDES-ESP01 reference board demonstrates the capability of the ST1VAFE6AX and ST1VAFE3BX biosensors to detect electrocardiography (ECG) and seismocardiography (SCG) signals using an electronic skin patch (eSP). The ST1VAFE6AX, mounted on the board, can also detect the gyrocardiography (GCG) signal enabled by the embedded gyroscope. The figure on the left depicts the eSP positioning with three terminals with snap connectors for using standard wet ECG electrodes or dry electrodes. This electronic board provides features for the computation of heart rate and heart rate variability. In addition, it can be used for implementing anomaly pattern detection and classification. Finally, developers can implement routines for motion-based events and context-aware biosignal acquisition and analysis.

  • All features

    • Supports electrocardiography (ECG), seismocardiography (SCG), and gyrocardiography (GCG)
    • Supports dry and wet electrodes for ECG
    • Supports a skin adhesive layer provided by DuPontTM LiveoTM
    • Computation of heart rate and heart rate variability
    • Activity tracking using the ST1VAFE6AX and ST1VAFE3BX biosensors
    • Context-aware ECG measurements
    • Bluetooth connectivity
    • Silicone rubber encapsulation
    • 35 mAh lithium-ion polymer battery
    • RoHS compliant
