Product overview
Description
The STEVAL-AETKT3V1 is an evaluation kit demonstrating TSC200, TSC201, TSC202 performances.
These devices are current sense amplifier with an overcurrent protection function that can operate in both high side and low side configuration.

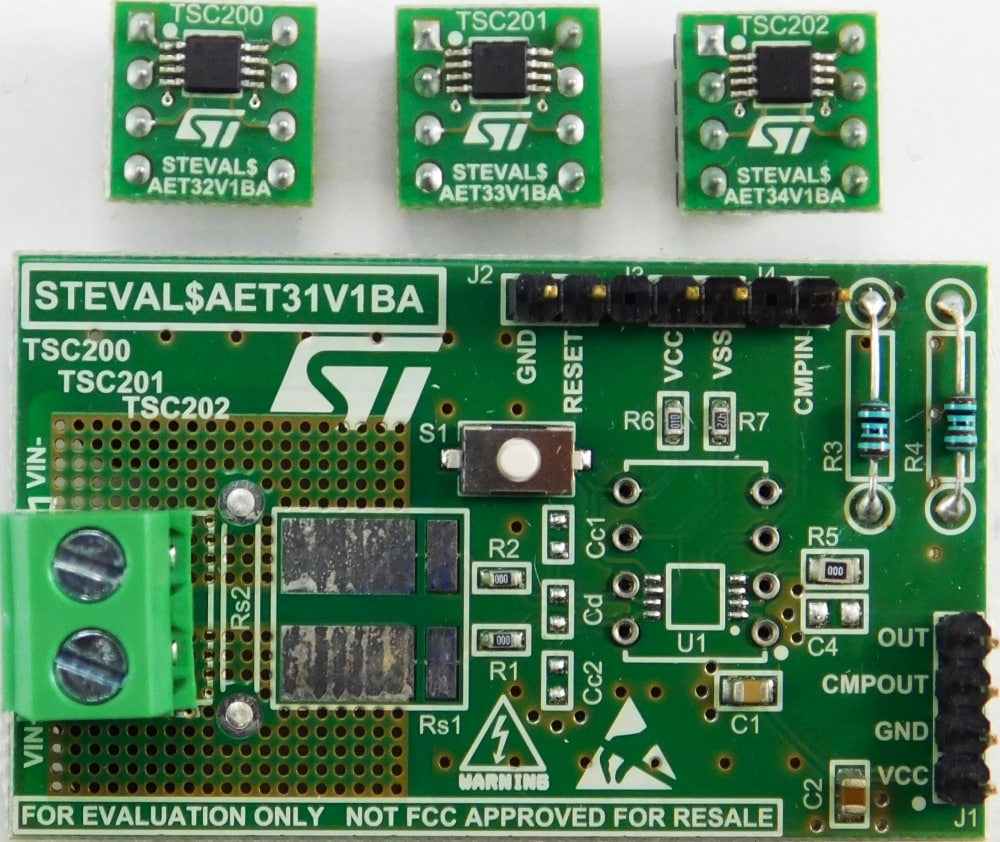

The STEVAL-AET31V1B is a mother board, which can accept different daughter boards to use different gain configuration.
STEVAL-AET32V1B is a daughter board with a TSC200 mounted with a gain of 20.
STEVAL-AET33V1B is a daughter board with a TSC201 mounted with a gain of 50.
STEVAL-AET34V1B is a daughter board with a TSC202 mounted with a gain of 100.
TSC20x is specially designed to accurately measure current by amplifying the voltage across a shunt resistor connected to its input.
-
All features
- Wide common-mode voltage: -16 to 80 V
- 2.7 to 18 V supply voltage
- Quiescent current: 1.8 mA maximum
- Internal open-drain comparator
- 0.6 V internal reference
- Latching capability on comparator
- SO-8 and MiniSO-8 package
- Temperature range -40 to 125°C
- RoHS compliant
