STEVAL-ISA081V1

Active
Save to myST

12 V /1 A SMPS wide range demonstration board based on the VIPER26

Download databrief
Order Direct
Overview

Product overview

Description

Description

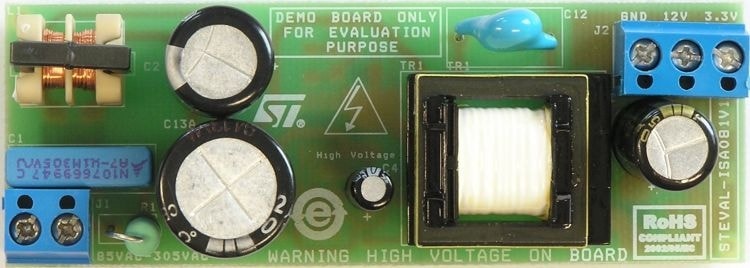

The STEVAL-ISA081V1 demonstration board is a switched mode power supply (SMPS) demonstration board and it is an isolated SMPS capable of delivering a 12 W output over a wide input voltage range.

It is designed for a mains application focusing on cost and size effective solutions.

The STEVAL-ISA081V1 SMPS generates 12 V nominal output voltage using primary regulation and it is based on the VIPER26 monolithic converter, integrating a high voltage MOSFET and PWM controller in one package.

  • All features

    • Vin: 85 ~ 305 Vrms / f: 45 ~ 66 Hz
    • Vout1: 12 VDC ± 10 %, 1 A (at 3.3 V not loaded)
    • Vout2: 3.3 VDC ± 4 %, 100 mA
    • Maximum total output current: 1 A
    • Standby < 120 mW at 230 VAC
    • Short-circuit: protected
    • PCB type and size: FR4, single-side 35 μm, 32 x 90 mm
    • Isolation: isolated 4 kV / 8 mm
    • EMI: according to EN55022 Class
    • RoHS compliant
