Product overview
Description

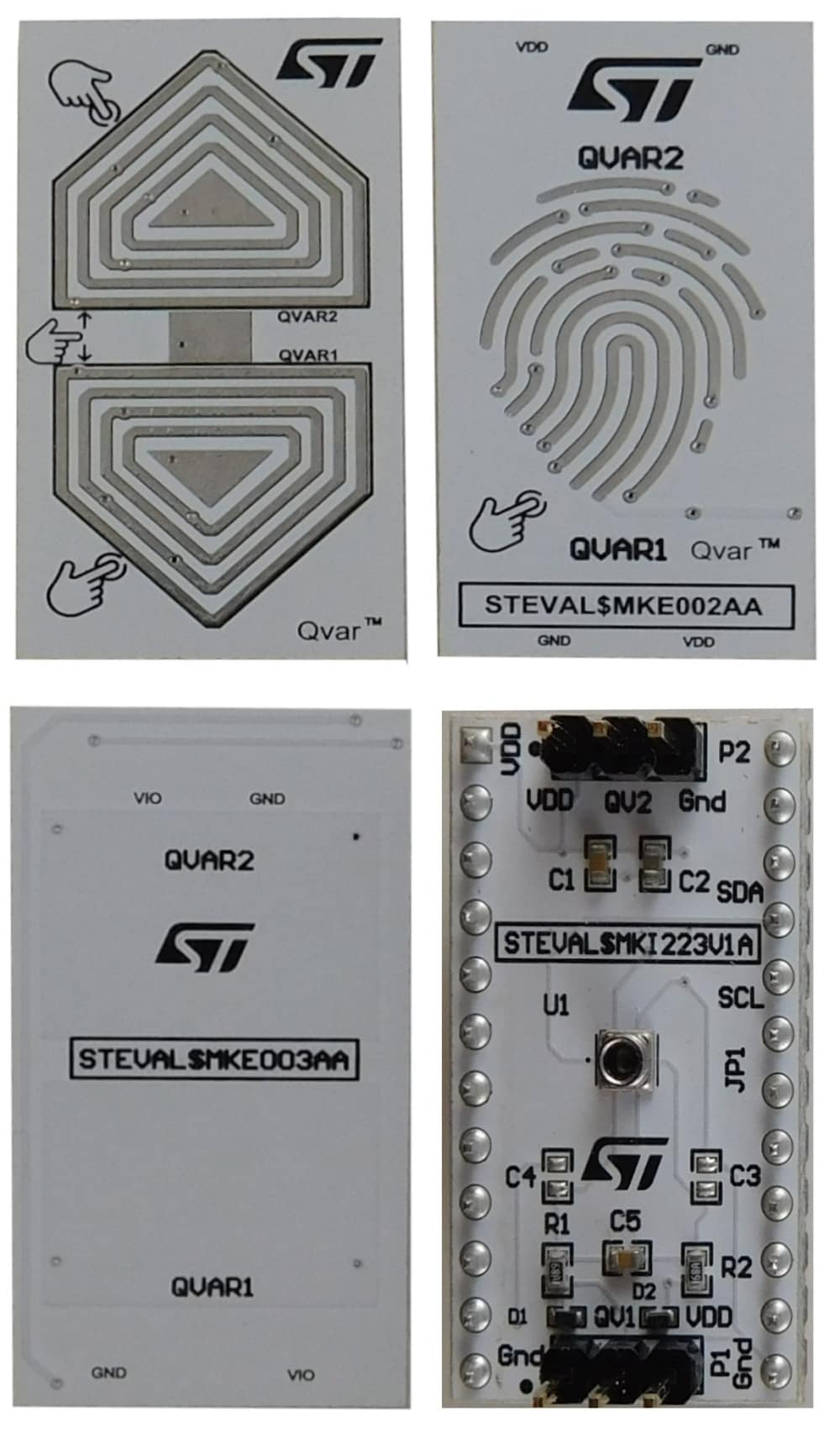

The STEVAL-MKI223V1K demonstration board is a kit composed of a PCB mounting the ILPS28QSW pressure sensor with a Qvar electrostatic sensor and a swipe electrode.
The electrode boards (STEVAL-MKE001A, STEVAL-MKE002A, or STEVAL-MKE003A) can be stacked on the STEVAL-MKI223V1 board. The kit provides the complete ILPS28QSW pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.
This adapter is supported by the STEVAL-MKI109V3 motherboard, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the MEMS Studio downloadable graphical user interface or dedicated software routines for customized applications.
-
All features
- User-friendly ILPS28QSW board
- Complete ILPS28QSW pinout for a standard DIL24 socket
- Fully compatible with the STEVAL-MKI109V3 motherboard
- RoHS compliant
