STEVAL-OET003V1

NRND
Save to myST

Evaluation board for automotive-grade ESD protection

Download databrief
Overview

Product overview

Description

Description

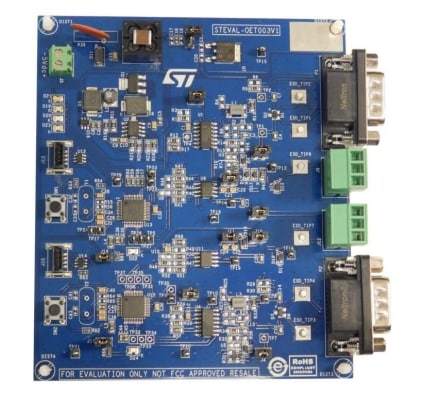

This demonstration tool is designed to provide an easy way to evaluate the robustness of ESD diodes developed for the automotive environment. It is based on a master-slave structure on the same board using two STM8AF528.

The microcontrollers communicate with each other via a communication loop based on LIN/CAN protocol. Communication flow status is indicated by four onboard LEDs. The LIN and CAN bus interfaces use four transceivers and are supplied by the step-up converter.

  • All features

    • Input voltage 5 V
    • 12 V output, step-up converter for transceiver supply voltage
    • LIN transceiver
    • CAN transceiver
    • Automotive-grade ESD protection
    • IEC61000-4-2 compatibility
