Product overview
Description

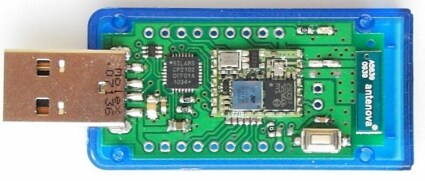

The STEVAL-SPBT2ATV2 demonstration board is a design tool to evaluate the SPBT2532C2.AT module in a quick and simple way.
The dongle includes the RF antenna and the USB connector.
The USB connector is used to connect the dongle to a PC, to access the Bluetooth module, and to supply the dongle.
The STEVAL-SPBT2ATV2 is a board which has downloaded FW, enabling the user to create a Bluetooth link with simple AT commands.
The AT command list is detailed in the SPBT2532C2.AT datasheet.
How to get started with STEVAL-SPBT2ATV2 is described in the AN3189 application note.
-
All features
- Bluetooth V2.1 board
- USB connection
- SMD antenna onboard
- RoHS compliant
All resources
| Resource title | Version | Latest update |
|---|
Bill of Materials (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| 2.1 | 01 Aug 2015 | 01 Aug 2015 |
