Product overview
Description

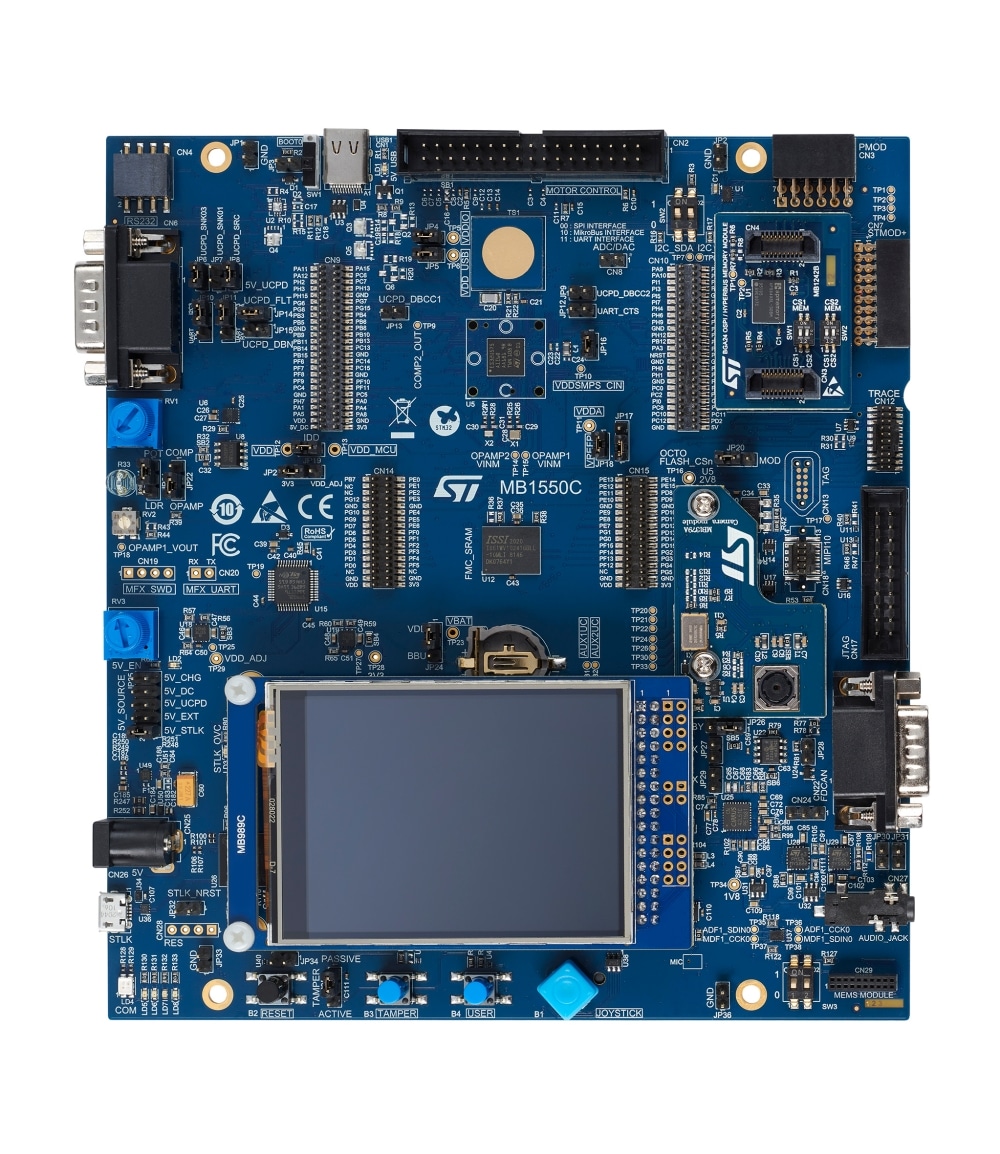

The STM32U575I-EV Evaluation board is designed as a complete demonstration and development platform for the STMicroelectronics Arm® Cortex®-M33 core‑based microcontroller with Arm® TrustZone® and the Armv8-M mainline security extension.
The STM32U575I-EV Evaluation board is based on an ultra-low-power STM32U575AII6Q microcontroller with 2 Mbytes of Flash memory and 786 Kbytes of SRAM, one external memory interface supporting an LCD interface, two Octo-SPI memory interfaces, one USB Type-C® 2.0 FS device and host with Power Delivery controller interface (UCPD) compliant with USB Type-C® r1.2 and USB PD specification r3.0, one camera interface, one SDMMC interface, one 14-bit and one 12-bit ADCs, two 12-bit DACs, two operational amplifiers, two ultra‑low‑power comparators, four digital filters for sigma‑delta modulation, up to 16 timers, touchkey capability, and SWD, JTAG, and ETM interface debugging support.
The full range of hardware features on the STM32U575I-EV Evaluation board helps the user to develop applications and evaluate all the peripherals, such as USB Type-C® connector with USB PD, motor control connector, CAN FD transceiver, USB 2.0 FS, RS-232, audio DAC, microphone ADC, dot-matrix TFT LCD, IrDA, IR LED, IR receiver, LDR, SRAM, camera interface, Octo-SPI Flash memory, microSD™ card, sigma-delta modulators, Smartcard slot, I2C, and EEPROM.
The daughterboard and extension connectors provide an easy way to connect a daughterboard or wrapping board for the user's specific application.
Furthermore, the onboard STLINK-V3E debugger provides out‑of‑the‑box loading and debugging capabilities, as well as a USB Virtual COM port bridge.
-
All features
- STM32U575AII6Q Arm® Cortex®-M33 core-based microcontroller including Arm® TrustZone® with 2 Mbytes of Flash memory, 786 Kbytes of SRAM, and an embedded SMPS in a UFBGA169 package
- 2.8” 240x320 pixel-262K color parallel port TFT LCD touch panel module
- CMOS camera QSXGA 5 megapixels
- USB Type-C® FS, Sink and Source power capability 5 V / 500 mA
- SAI audio codec
- ST-MEMS digital microphone
- ST-MEMS 3D accelerometer and 3D gyroscope sensor
- Light-dependent resistor (LDR) and potentiometer for ADC
- 512-Mbit Octo-SPI Flash, 16-Mbit SRAM, 128-Kbit I2C EEPROM
- Power-metering demonstration with dual‑channel sigma‑delta modulator
- 4 user LEDs
- Reset, Tamper, and User buttons
- 4-direction joystick with selection button
- Touchkey button
- Board connectors
- 5V power jack
- USB Type-C®
- RS-232 communication and I2C compatible serial interface
- CAN FD
- Stereo audio jack including analog microphone input
- Connector for ADC input and DAC output
- Smartcard socket
- microSD™ card holder
- Coin-battery cell holder for power backup
- JTAG and ETM trace debugger connector
- 8‑bit camera expansion connector
- Octo-SPI expansion connectors
- Pmod™ and STMod+ expansion connectors
- Audio MEMS expansion connector
- Motor-control interface expansion connector
- Expansion connectors for daughterboard or wire-wrap board
- Flexible power-supply options: ST-LINK, USB VBUS, or external sources
- On-board STLINK-V3E debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
- Comprehensive free software libraries and examples available with the STM32CubeU5 MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
