Product overview
Description
The ST87M01 is a high-performance, fully programmable, ultra-compact, low-power, certified LTE Cat NB2 NB-IoT and GNSS industrial module series offering worldwide band coverage, with advanced security features.
-
All features
- LTE, category NB2, Release 15
- Worldwide regional band coverage
- Single tone/Multi tone/Extended TBS and 2 HARQ
- Up to DL: 127 kbps, UL: 159 kbps
- eDRX and PSM support
- Ultralow power mode 1.2 uA typical (0.5 uA typical in power-off)
- Ultra-compact size
- Embedded IoT internet protocols
- Differential FOTA support
- Up to 23 dBm power-out
- Multiple I/F and GPIO
- GCF certified
- RED certified
- Optional eSIM GSMA compliant with an additional secure element
- Optional GNSS and A-GNSS
You might also like...
Featured Videos
ST87M01 - Low-power NB-IoT industrial module with GNSS capability
EDA Symbols, Footprints and 3D Models
STMicroelectronics - ST87M01
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
Quality and Reliability

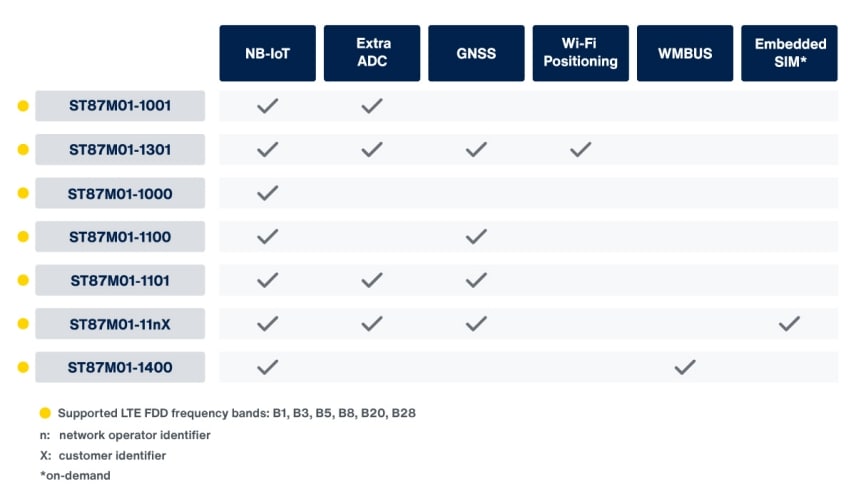

| Part Number | Marketing Status | Package | Grade | RoHS Compliance Grade | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| ST87M01-1000 | Active | SMD MODULE | Industrial | Ecopack2 | 15 | 2025-01-01T00:00:00.000+01:00 | |
| ST87M01-1100 | Active | SMD MODULE | Industrial | Ecopack2 | 15 | 2025-01-01T00:00:00.000+01:00 | |
| ST87M01-1101 | Active | SMD MODULE | Industrial | Ecopack2 | 15 | 2025-01-01T00:00:00.000+01:00 | |
| ST87M01-1110 | Active | SMD MODULE | Industrial | Ecopack3 | 15 | 2025-01-01T00:00:00.000+01:00 | |
| ST87M01-1111 | Active | SMD MODULE | Industrial | Ecopack2 | 15 | 2025-01-01T00:00:00.000+01:00 | |
| ST87M01-1400 | Active | SMD MODULE | Industrial | Ecopack2 | 15 | 2025-01-01T00:00:00.000+01:00 | |
ST87M01-1111
Package:
SMD MODULEMaterial Declaration**:
PDFST87M01-1400
Package:
SMD MODULEMaterial Declaration**:
(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
Sample & Buy
| Part Number | Marketing Status | Budgetary Price (US$)*/Qty | Order from ST | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| min | max | |||||||||||||
| ST87M01-1110 | | | distributors No availability of distributors reported, please contact our sales office | |||||||||||
| ST87M01-1101 | | | distributors No availability of distributors reported, please contact our sales office | |||||||||||
| ST87M01-1111 | | | distributors No availability of distributors reported, please contact our sales office | |||||||||||
| ST87M01-1000 | | | distributors No availability of distributors reported, please contact our sales office | |||||||||||
| ST87M01-1100 | | | distributors No availability of distributors reported, please contact our sales office | |||||||||||
| ST87M01-1400 | | | distributors No availability of distributors reported, please contact our sales office | |||||||||||
ST87M01-1110 Active
ST87M01-1101 Active
ST87M01-1111 Active
ST87M01-1000 Active
ST87M01-1100 Active
ST87M01-1400 Active
(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
