People presence detection (visual wake word)
Human detection on high-performance MCU.
Making homes and buildings smarter means offering an occupant-centric management of the environment we live and work in. This paradigm shift requires enhanced sensing intelligence in the surrounding electronic components. In this context, people presence detection opens up new possibilities to make lighting, heating, air conditioning applications smarter and more efficient.
Approach
- We used of a camera module (B-CAMS-OMV) to capture the scene and scaled down to 96x96 pixels
- We selected a pre-trained NN model from Google visual wake word to manage presence detection
- The model is already integrated in the function pack FP-AI-VISION1 (made for STM32H747 discovery kit)
- The model is optimized using STM32Cube.AI
- We selected a pre-trained NN model from Google visual wake word to manage presence detection
- The model is already integrated in the function pack FP-AI-VISION1 (made for STM32H747 discovery kit)
- The model is optimized using STM32Cube.AI
Sensor
Vision: camera module bundle (reference: B-CAMS-OMV)
Data
Data format
2 classes: people / no-people
Color image 96x96 image for MobileNet v1 0.25
Color image 128x128 for MobileNet v2 0.35
2 classes: people / no-people
Color image 96x96 image for MobileNet v1 0.25
Color image 128x128 for MobileNet v2 0.35
Results
Model: MobileNet v1 0.25 quantized
Input size: 96x96x3
Memory footprint:
214 KB Flash for weights
40 KBRAM for activations
Accuracy: 85% against Coco subset dataset
Performance on STM32H747* @ 400 MHz
Inference time: 36 ms
Frame rate:28 fps
Model: MobileNet v2 0.35 quantized
Input size: 128x128x3
Memory footprint:
402 KB Flash for weights
224 KBRAM for activations

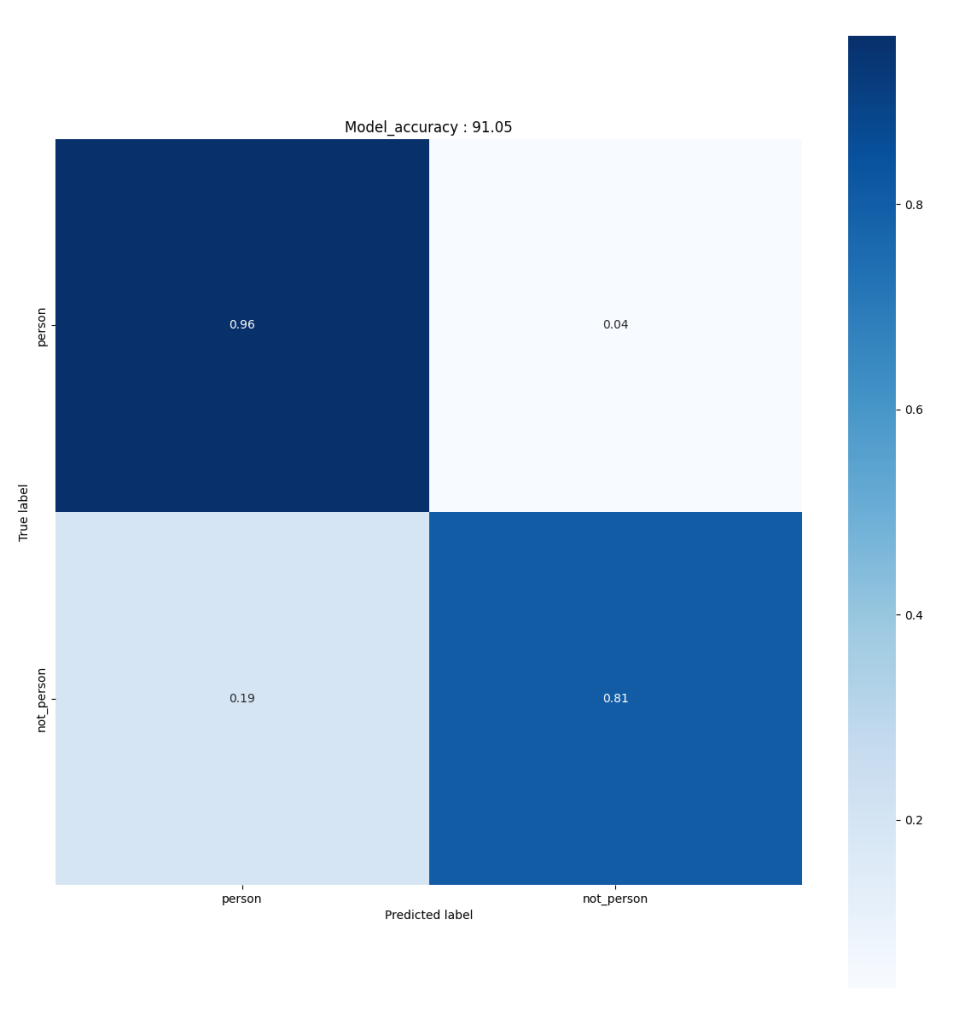

Accuracy: 91% against Coco subset dataset
Performance on STM32H747* @ 400 MHz
Inference time: 110 ms
Frame rate: 9 fps
* As measured with STM32CubeAI 7.1.0 in FP-AI-VISION1 3.1.0
Input size: 96x96x3
Memory footprint:
214 KB Flash for weights
40 KBRAM for activations
Accuracy: 85% against Coco subset dataset
Performance on STM32H747* @ 400 MHz
Inference time: 36 ms
Frame rate:28 fps
Model: MobileNet v2 0.35 quantized
Input size: 128x128x3
Memory footprint:
402 KB Flash for weights
224 KBRAM for activations
Accuracy: 91% against Coco subset dataset
Performance on STM32H747* @ 400 MHz
Inference time: 110 ms
Frame rate: 9 fps
* As measured with STM32CubeAI 7.1.0 in FP-AI-VISION1 3.1.0
Resources
Optimized with STM32Cube.AI
A free STM32Cube expansion package, X-CUBE-AI allows developers to convert pretrained AI algorithms automatically, such as neural network and machine learning models, into optimized C code for STM32.
Compatible with STM32H7 series
The STM32 family of 32-bit microcontrollers based on the Arm Cortex®-M processor is designed to offer new degrees of freedom to MCU users. It offers products combining very high performance, real-time capabilities, digital signal processing, low-power / low-voltage operation, and connectivity, while maintaining full integration and ease of development.
