Product overview
Description

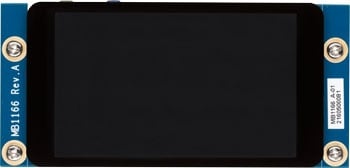

LCD daughterboard (B-LCD40-DSI1) provides a 4-inch WVGA TFT color LCD with a MIPI®DSI interface.
This LCD daughterboard is an optional display board that can be used with a discovery board such as the STM32F769I-DISC1. The evaluation boards STM32F769I-EVAL, STM32F779I-EVAL, STM32469I-EVAL, STM32479I-EVAL as well as the discovery board STM32F769I-DISCO are delivered with this LCD daughterboard already connected.
-
All features
- 4-inch TFT color LCD
- 480 (RGB)*800 pixels
- 16.7M display colors
- RGB vertical stripe of pixel arrangement
- Up to two lanes of MIPI®DSI data
- Self-capacitive touch panel supporting single-point touch and gesture or two-point touch
- 2.8V-3.3V power supply for both LCD and touch panel, 5V power supply for backlight
