Product overview
-
All features

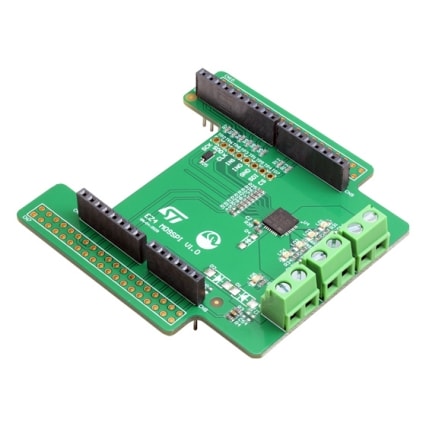

- Simple single IC application board dedicated to EV-VN9D5D20FN
- Provides electrical connectivity and thermal heat-sinking for easy prototyping
- General device features
- Extreme low voltage operation for deep cold cranking applications (compliant with LV124, revision 2013)
- 24-bit ST-SPI for full diagnostic and digital current sense feedback
- Integrated 10 bit ADC for digital current sense
- Programmable Bulb/LED mode for all channels
- Advanced limp home functions for robust fail-safe system
- Very low standby current
- Optimized electromagnetic emissions
- Very low electromagnetic susceptibility
- Control through direct inputs and / or SPI
- Compliant with European directive 2002/95/EC
- Diagnostic functions
- Digital proportional load current sense
- Synchronous diagnostic of over load and short to GND, output shorted to VCC and OFF-state open-load
- Programmable case overtemperature warning
- Protections
- Two levels load current limitation
- Self limiting of fast thermal transients
- Undervoltage shutdown
- Overvoltage clamp
- Latch-off or programmable time limited auto restart (power limitation and overtemperature shutdown)
- Load dump protected
- Protection against loss of ground
