Product overview
Description

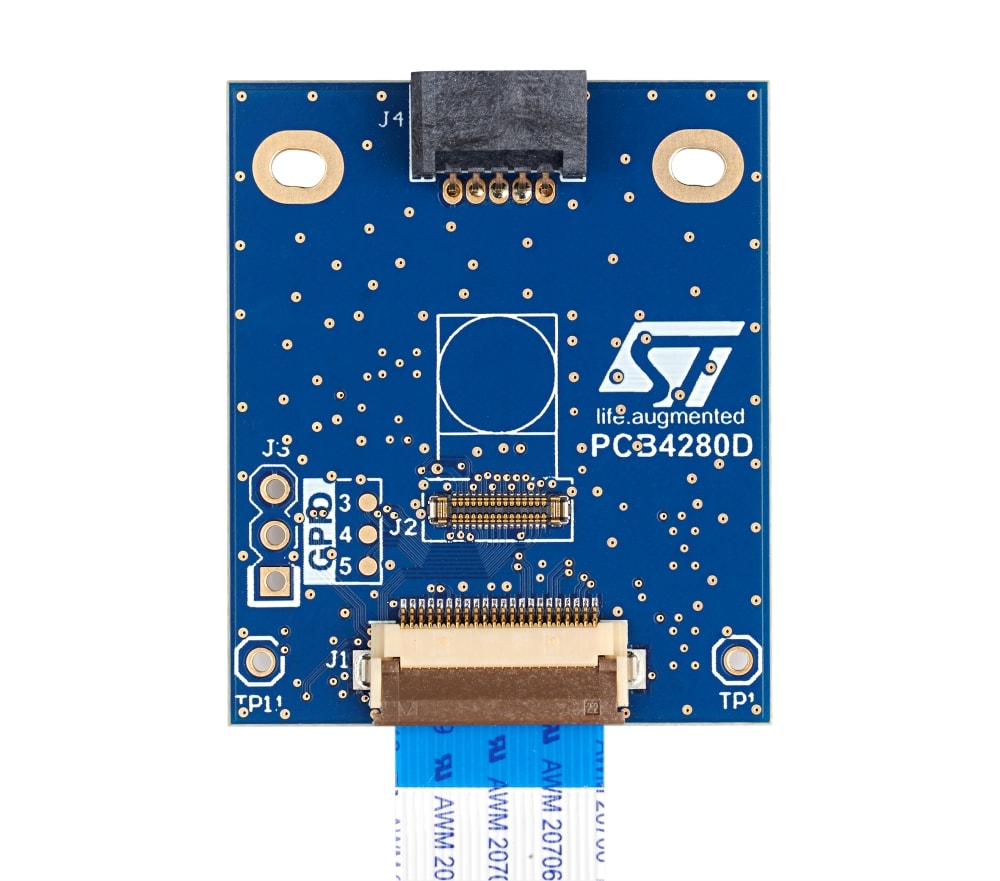

The P-Board is a versatile hardware kit for integrating seamlessly any ST BrightSense image sensor in the form of a promodule on embedded processing platforms. This comprehensive development solution includes a promodule board with MIPI CSI-2 output and a ribbon cable.
Featuring a MIPI CSI-2 output and I²C communication interface, the P-Board is natively compatible with embedded vision platforms. Hardware integration is immediate by plugging the standard FFC cable provided from the P-Board to the embedded processing board. Software integration is just as simple by using the various Linux drivers available for free download in the Imaging Software section of our website. This combination of hardware and software tools makes the P-Board the ideal development solution for Linux environments.
Relying on an FFC-to-board input connector, the P-Board allows users to integrate turnkey promodules instantly in a plug-and-play approach. The common connector and pinout shared by all ST promodules allow users to use the P-Board with any promodule. This convenient plug-and-play approach offers the opportunity to reuse this affordable kit at any time to integrate various sensor and lens combinations in the form of an evaluation camera module. With the P-Board, benefit from the flexibility to test or integrate various sensors by just plugging and unplugging camera modules.
-
All features
- Comprehensive hardware kit including:
- Promodule board with input connector for camera modules and FFC output connector.
- Ribbon cable to connect directly to embedded processing boards.
- Instant integration onto embedded processing platforms:
- Native MIPI CSI-2 output and I²C communication interfaces.
- FFC connector and associated cable provided for direct plug-and-play connection to the platform.
- Various Linux drivers are available for free download on st.com to make software integration instant.
- A single and reusable solution for integrating all ST BrightSense solutions:
- A single input connector that supports all ST promodules
- Plug-and-play input connector to change sensor or lens instantly.
- Promodule to be ordered separately.
- Comprehensive hardware kit including:
You might also like...
All resources
| Resource title | Version | Latest update |
|---|
Board Manufacturing Specifications (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| ZIP | 1.0 | 29 Jul 2024 | 29 Jul 2024 |
Bill of Materials (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| 1.0 | 29 Jul 2024 | 29 Jul 2024 |
Schematic Pack (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| 1.0 | 29 Jul 2024 | 29 Jul 2024 |
CAD Design Files (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| ZIP | 1.0 | 29 Jul 2024 | 29 Jul 2024 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | RoHS Compliance Grade | WEEE Compliant | Material Declaration** |
|---|---|---|---|---|---|---|
| STEVAL-CAM-M0I1 | Active | CARD | Industrial | Ecopack1 | - | |
STEVAL-CAM-M0I1
Package:
CARDMaterial Declaration**:
(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
Sample & Buy
| Part Number | Marketing Status | Budgetary Price (US$)*/Qty | Order from ST | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Supplier | General Description | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-CAM-M0I1 | | | distributors No availability of distributors reported, please contact our sales office |
|
|
STEVAL-CAM-M0I1 Active
(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
