STEVAL-ESL1KCB

Active
Save to myST

Electronic shelf label (ESL) based on Bluetooth low energy

Download databrief
Overview

Product overview

Description

Description

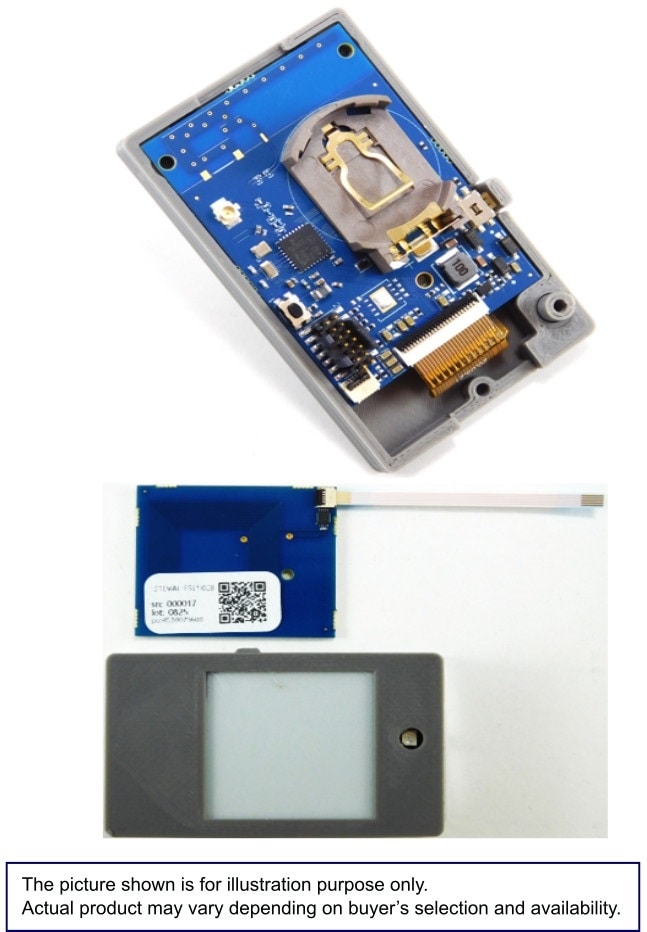

The STEVAL-ESL1KCB is a modular application example of a wireless electronic shelf label (ESL) featuring Bluetooth® Low Energy and NFC connectivity. The kit includes two boards.

The STEVAL-ESLWB0CB with the ultralow power wireless STM32WB09KE microcontroller grants the communication with another Bluetooth® Low Energy device acting as an access point to set the ESL display (price, text, icons) via PAwR packets.

The STEVAL-ESLST25CB with the ST25DV04KC dynamic NFC/RFID tag IC stores more product information like the address of a web page.

The STEVAL-ESLWB0CB can run the ESL application STM32WB0-BLE-PAwR-ESL.

  • All features

    • Ultralow power wireless STM32WB09KE microcontroller based on the Arm Cortex®‑M0+ core, featuring 512 Kbytes of flash memory and 64 Kbytes of SRAM in a VFQFPN32 package
    • Supports Bluetooth® Low Energy SIG specification v5.4 PAwR feature
    • ST25DV04KC-IE6C3 dynamic NFC/RFID tag IC with 4-Kbit EEPROM
    • On-board 2.4 GHz PCB antenna
    • On-board 13.56 MHz inductive antenna
    • STLINK-V3SET target connector
    • User LED
    • User and reset push buttons
    • 1.54 inches E-Ink display
    • CR2032 battery holder
    • Dedicated STM32 hotspot containing firmware and setup guide
