Product overview
Description

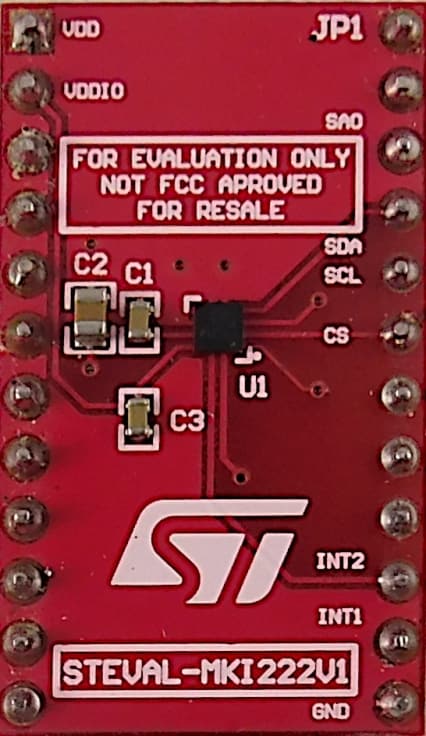

The STEVAL-MKI222V1 is an adapter board designed to facilitate the evaluation of the LIS2DU12 accelerometer. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.
The STEVAL-MKI222V1 can be plugged into a standard DIL24 socket.
It provides the complete LIS2DU12 pinout and embeds the required decoupling capacitors on the VDD power supply line.
This adapter is supported by the STEVAL-MKI109V3 motherboard, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the MEMS Studio downloadable graphical user interface or dedicated software routines for customized applications.
The adapter is also compatible with the X-NUCLEO-IKS01A3 expansion board to develop your own applications.
-
All features
- Complete LIS2DU12 pinout for a standard DIL24 socket
- Fully compatible with the STEVAL-MKI109V3 motherboard
- RoHS compliant
