STEVAL-MKI225A

Active
Save to myST

LPS28DFW adapter board for a standard DIL24 socket

Download databrief
Order Direct
Overview

Product overview

Description

Description

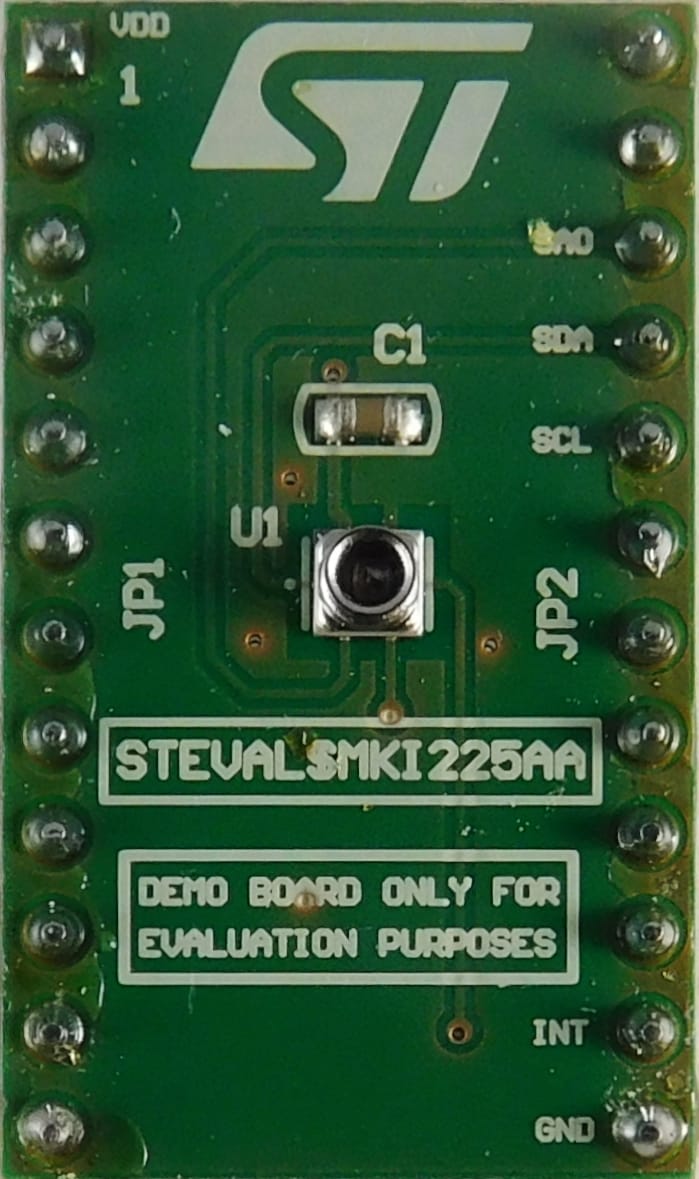

The STEVAL-MKI225A is an adapter board designed to facilitate the evaluation of the LPS28DFW pressure sensor. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.

The STEVAL-MKI225A can be plugged into a standard DIL24 socket. The adapter provides the complete LPS28DFW pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.

This adapter is supported by the STEVAL-MKI109V3 motherboard, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the MEMS Studio downloadable graphical user interface or dedicated software routines for customized applications.

The STEVAL-MKI225A adapter board can also be plugged into other boards like the X-NUCLEO-IKS01A3 expansion board.

  • All features

    • Complete LPS28DFW pinout for a standard DIL24 socket
    • Fully compatible with the STEVAL-MKI109V3 motherboard
    • RoHS compliant
