Product overview
Description
The STEVAL-MKI237KA evaluation kit is based on a specific PCB mounting the LSM6DSV16BX IMU (inertial measurement unit). The kit provides the complete LSM6DSV16BX pinout and comes ready to use with the required decoupling capacitors on the VDD power supply line.

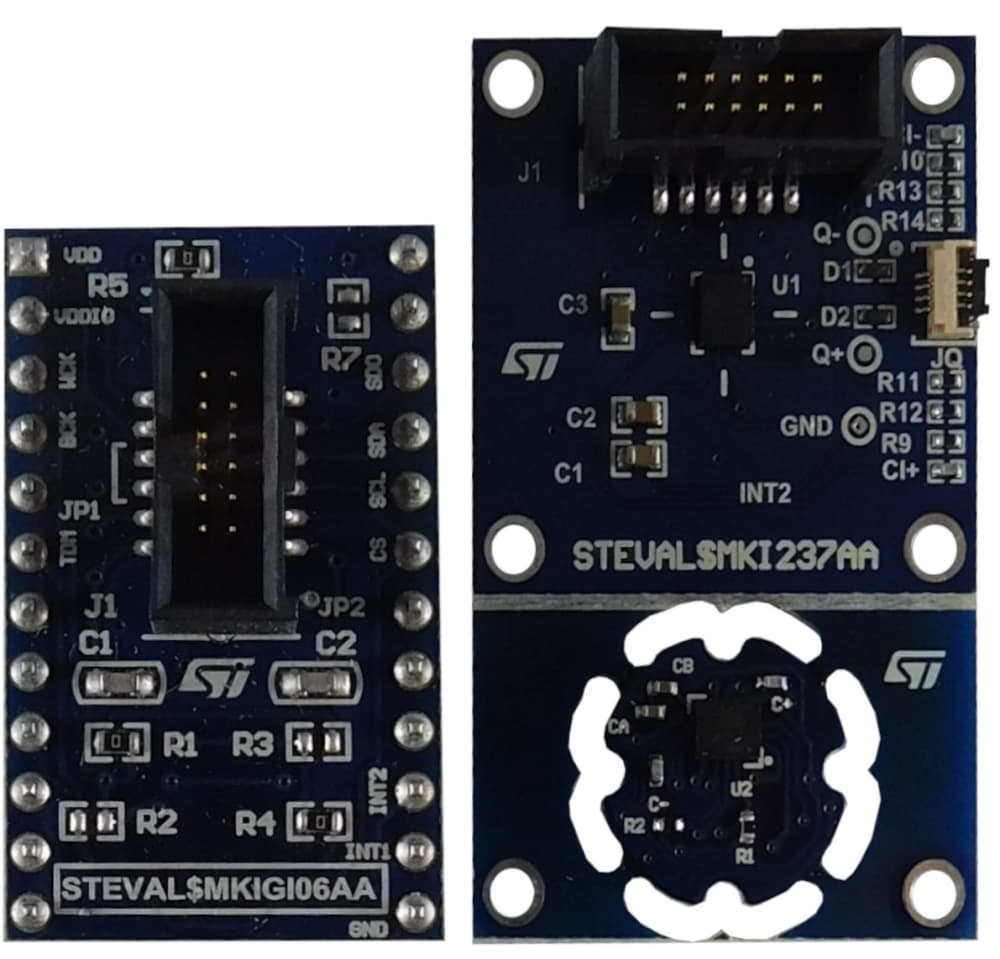

There are two different boards inside the STEVAL-MKI237KA. One can be used as a standard application board and a small adapter can be put inside the earphone to verify the bone conduction feature. This small electrode flex connector can be used as the concept of the application. Both boards can be connected with the STEVAL-MKI109V3 using the STEVAL-MKIGI06A interface board.
This adapter is supported by the STEVAL-MKI109V3 motherboard, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC.
It is also possible to plug the board into an X-NUCLEO-IKS01A3 expansion board.
MEMS-Studio is a complete software solution for the evaluation and programming of all MEMS sensors and it is available for Linux, macOS, and Windows operating systems.
You can also use the downloadable graphical user interface (Unico-GUI) or dedicated software routines for customized applications.
-
All features
- User friendly LSM6DSV16BX board
- Complete LSM6DSV16BX pinout for a standard DIL24 socket
- Fully compatible with the STEVAL-MKI109V3 motherboard
- RoHS compliant
