STEVAL-TDR016V1

Active
Save to myST

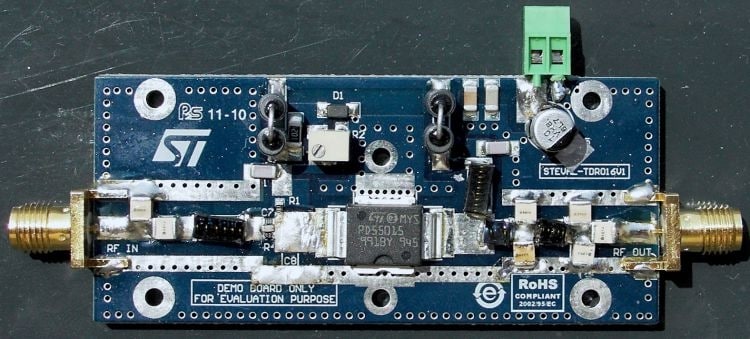

30 W, 155 - 165 MHz evaluation board based on PD55015-E

Download datasheet
Overview

Product overview

Description

The STEVAL-TDR016V1 is a common source N-channel enhancement-mode lateral field effect RF power amplifier designed for VHF marine radio application.

  • All features

    • Excellent thermal stability
    • Frequency: 155 - 165 MHz
    • Supply voltage: 20 V
    • Output power: 30 W
    • Power gain: 14.7 ± 0.3 dB
    • Efficiency: 60% - 72%
    • Load mismatch: 20:1
    • Beo free amplifier
