Product overview
Key Benefits
Quick connect the MCU to your prototype board
Save time on wiring thanks to QFN20/DIP20 daughter board which can be unplugged and re-plugged to the prototype board.
Ready-to-use wired samples
Simply log on and go straight to your application development with this STM32C0 Discovery kit.
Highly affordable
The STM32C0116-DK is aimed at all budgets, as its price is similar to STM32 Nucleo boards.
Description

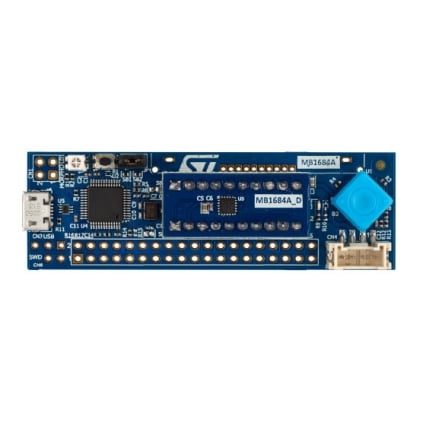

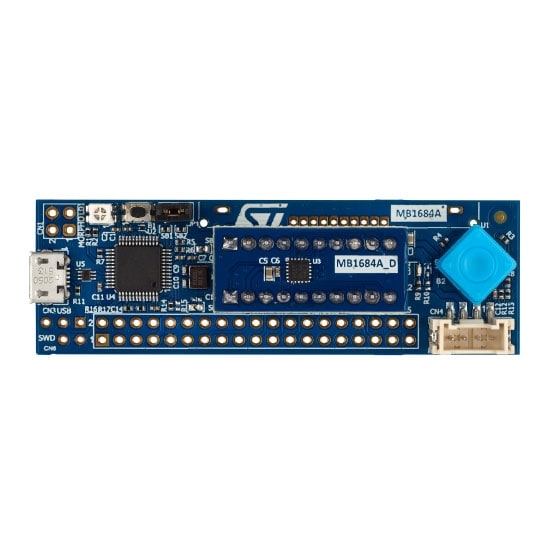

The STM32C0116-DK Discovery kit helps to discover features of the STM32C0 Series microcontroller in a UFQFPN20 package. This Discovery kit features one UFQFPN20 to DIL20 module designed with the STM32C011F6 microcontroller and allows the user to develop and share applications. It includes an on-board ST-LINK/V2-1 to debug and program the embedded STM32 microcontroller.
The STM32C0116-DK Discovery kit is operated by plugging it into a PC through a standard USB Type-A or USB Type-C® to Micro-B cable.
-
All features
- STM32C011F6 Arm® Cortex®‑M0+ core-based microcontroller with 32 Kbytes of Flash memory and 6 Kbytes of RAM, in a UFQFPN20 package
- User LED
- Reset push-button
- 5‑way joystick using a single ADC input pin
- Individual STM32 UFQFPN20 to DIL20 module
- Board connectors:
- USB Micro-B
- DIL20 socket
- Dedicated LCD footprint
- Grove (UART)
- 2 x 10‑pin headers for MCU daughterboard
- Extension connectors
- On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage and debug port
- Comprehensive free software libraries and examples available with the STM32Cube MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
