STPM4RasPI

Active
Save to myST

TPM development kit

Download databrief
Overview

Product overview

Description

Description

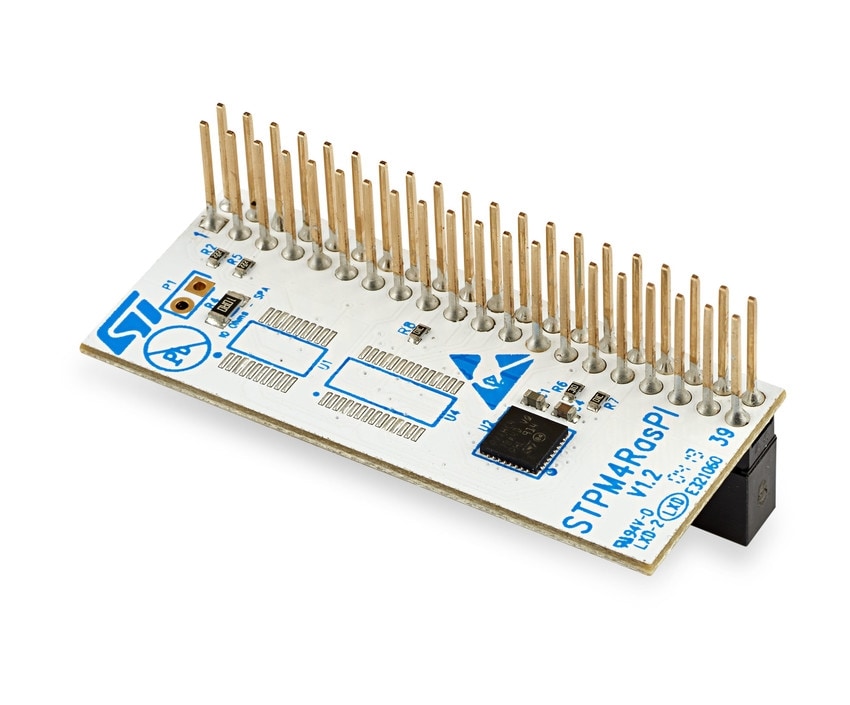

The STPM4RasPI is an official extension board to connect the ST33 TPM products to the Raspberry Pi® device. It is designed for development, proof of concept or demonstration activities. The board is shipped with one trusted platform module soldered.

  • All features

    • I²C TPM compatible serial interface
    • SPI TPM compatible serial interface
    • 40-pin female connector to plug on Raspberry Pi®
    • 40-pin male connector to probe signal or connect another extension board
    • P1 connector (optional) to measure the TPM power consumption
    • Supported ST33 TPM devices:
      • ST33TPHF20SPI, ST33TPHF2ESPI, ST33TPHF2XI2C, ST33TPHF20I2C, ST33TPHF2EI2C and ST33TPHF2XSPI in VFQFPN32 package
