Product overview
Description

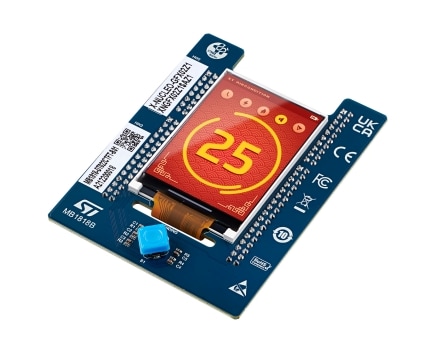

The X-NUCLEO-GFX02Z1 expansion board adds graphic user interface (GUI) capability to STM32 Nucleo-144 boards.
It features a 2.2” 8-bit parallel interface TFT display as well as a 64-Mbit Q-SPI NOR Flash memory for storing graphic images, texts and texture. The expansion board also offers a joystick for GUI navigation.
X-NUCLEO-GFX02Z1 features the Zio connector. It is compatible with the NUCLEO-F412ZG, NUCLEO-F413ZH, NUCLEO-F446ZE, NUCLEO-F722ZE, NUCLEO-F746ZG, NUCLEO-F756ZG, NUCLEO-F767ZI, NUCLEO-H743ZI, NUCLEO-H723ZG, NUCLEO-H753ZI, NUCLEO-H745ZI-Q, NUCLEO-H755ZI-Q, NUCLEO-H7A3ZI-Q, NUCLEO-L496ZG, NUCLEO-L496ZG-P, NUCLEO-L4A6ZG, NUCLEO-L4P5ZG, NUCLEO-L4R5ZI, NUCLEO-L4R5ZI-P, NUCLEO-L552ZE-Q and NUCLEO-U575ZI-Q Nucleo-144 boards.
-
All features
- 2.2” 8-bit parallel interface QVGA TFT LCD
- 64-Mbit Q-SPI NOR Flash memory
- Joystick for easy menu navigation
- Compatible with selected STM32 Nucleo-144 boards using the Zio connector
