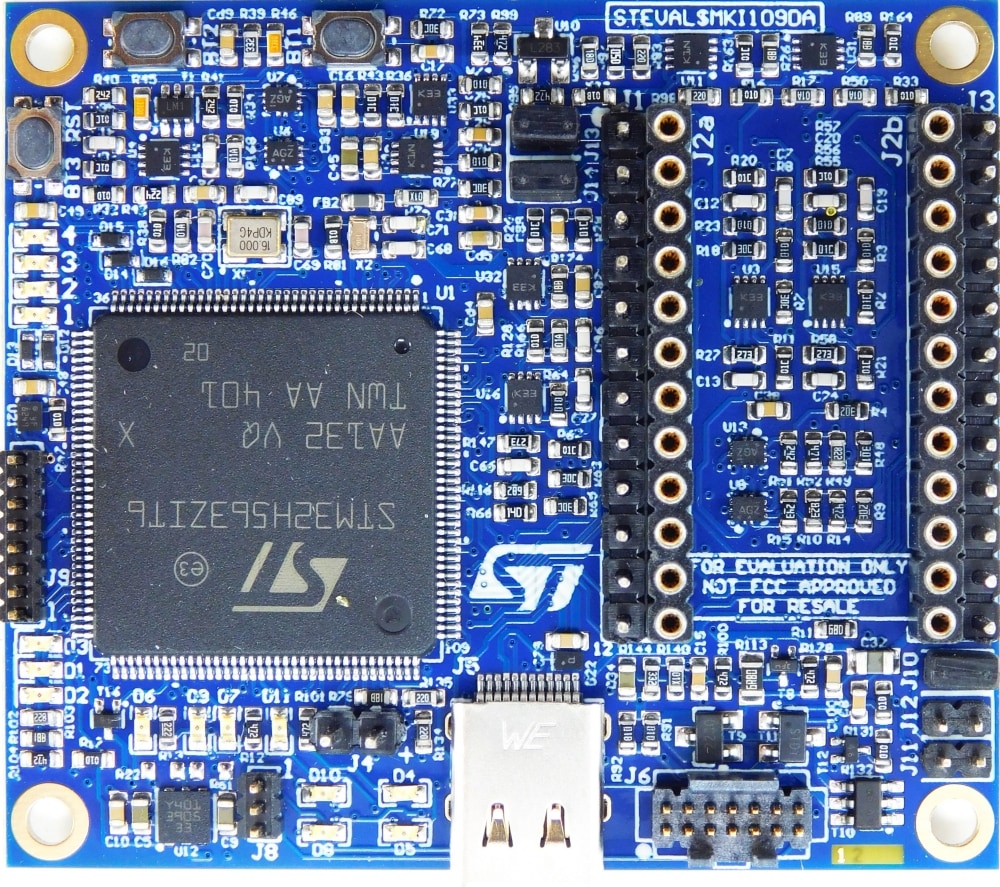

STEVAL-MKI109D is a development platform that allows engineers to monitor the behavior of ST MEMS sensors.
This mother board can help to accelerate the time to market and maximize the performance of new product designs.
This board is compatible with ST MEMS adapter boards and supports I2C, I3C, and SPI data modes for very high output data rates. It is also able to manage the TDM interface.
This professional MEMS tool features a high performance STM32H563ZI microcontroller and flexible power management with software-adjustable power circuitry that allows you to set the sensor supply voltage from 0 to 3.6 V and replicate the operating conditions in the intended application.
The board includes accurate power monitoring on sensor supply voltage and current, so external instruments are not required.
The SD card can help to create ad hoc application for ST MEMS devices.
You can run the graphical user interface (GUI) MEMS-Studio on a host PC to manage data flow from MEMS sensors and analyze MEMS sensor waveforms, which can help you explore the operating modes and power settings to optimize sensor performance and accuracy in your application,
The STM32H563ZI Arm Cortex®-M33 microcontroller with DSP and FPU can process much more than sensor readings such as barometric pressure and accelerometer or
gyroscope data. It can handle complex datasets like optical or electronic image stabilization (OIS and EIS, respectively) from ST’s advanced 6-axis inertial modules and can be used to evaluate the latest generation of high-resolution MEMS sensors for industrial applications.
-
All features
- Plug and play rapid evaluation of the ST MEMS sensor
- Compatible with all available ST MEMS DIL24 adapter boards
- PC-based evaluation software with user friendly graphical interface
- Full support of I2C, I3C, SPI and TDM data modes
- Software-adjustable power circuitry to set sensor supply voltage from 0 to 3.6 V on VDD and VDDIO pins of DIL24
- On line current consumption measurement
- Firmware update via USB
- Can be used with PC software like MEMS studio GUI to manage and analyze MEMS sensor data
- SD card slot (SD card not included)
- USB Type-C® connector
- RoHS compliant
- CE Certified
