B-ZEST-ADAPT1

Active
Design Win

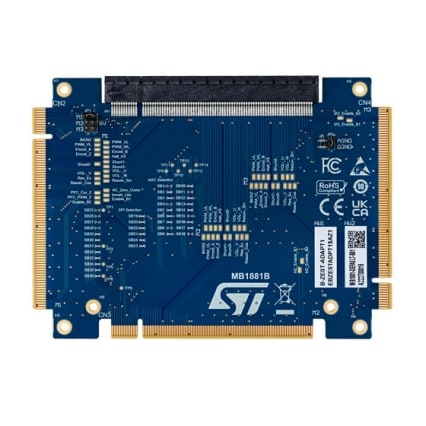

Adapter board for STM32 ZeST Motor control boards

Download databrief Order Direct

Product overview

Description

The B-ZEST-ADAPT1 adapter board expands the abilities of control cards using a V2 motor-control connector (PCIe x16) by splitting the command signals into three connectors, enabling up to three power board management.

  • All features

    • V2 motor-control connector splitter to three connectors allowing up to three motor board operation
    • Signal configuration through solder bridges (SPI, ADC)
    • Separate analog and digital ground planes for isolated operations with compatible boards

You might also like...

Quality and Reliability

Part Number Marketing Status RoHS Compliance Grade Material Declaration**
B-ZEST-ADAPT1
Active
Ecopack1

B-ZEST-ADAPT1

Package:

Ecopack1

Material Declaration**:

Marketing Status

Active

RoHS Compliance Grade

Ecopack1

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
