X-NUCLEO-53L4A3

量産中
MySTに保存する

Time-of-Flight high-accuracy proximity sensor expansion board based on the VL53L4ED for STM32 Nucleo

データブリーフのダウンロード
Order Direct
概要

製品概要

概要

概要

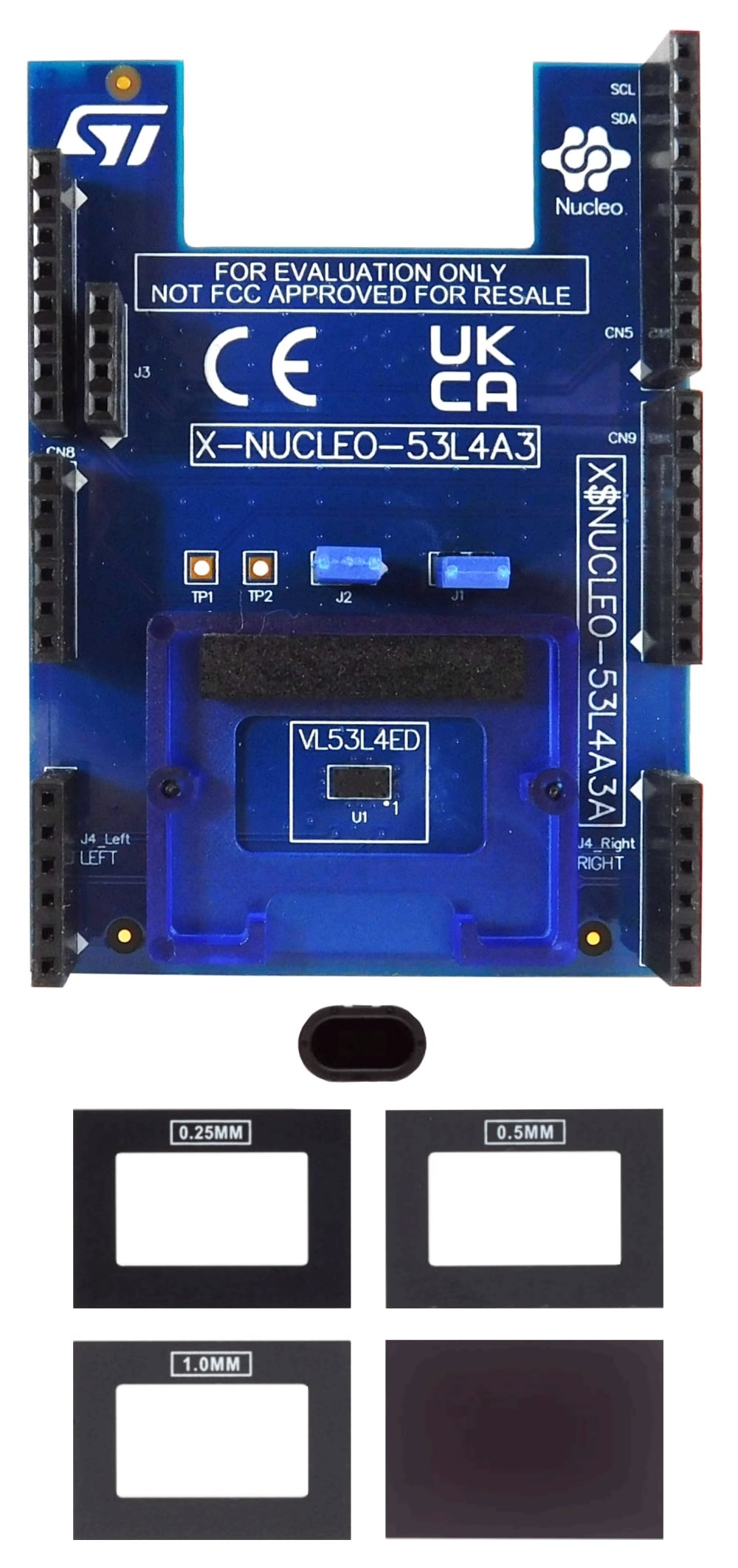

The X-NUCLEO-53L4A3 is an expansion board for any STM32 Nucleo board equipped with the Arduino R3 connectors. It provides a complete evaluation kit that allows you to learn, evaluate, and develop applications using the VL53L4ED Time-of-Flight high-accuracy proximity sensor with extended temperature capability.

The expansion board is delivered with a cover glass holder in which you can fit three different spacers of 0.25, 0.5, and 1 mm height below the cover glass to simulate various air gaps. A small oval cover glass fitting the sensor is included.

Several ST expansion boards can be stacked through the Arduino connectors, which allow, for example, the development of VL53L4ED applications with Bluetooth or Wi-Fi interfaces.

The evaluation boards shall be tested exclusively under normal temperature conditions. The board is not rated for high temperature operation.

  • 特徴

    • VL53L4ED Time-of-Flight high accuracy proximity sensor with extended temperature capability
    • Accurate absolute ranging distance, independent of the reflectance of the target
    • Effective sensor temperature range from -40 to 105°C
    • 0.25, 0.5, and 1 mm spacers to simulate air gaps
    • Two different cover glasses to protect the sensor from dust
    • Compatible with STM32 Nucleo development boards
    • Equipped with Arduino® UNO R3 connectors
    • Full system software supplied, including code examples and graphical user interface
    • RoHS, CE, UKCA, and China RoHS compliant
