X-NUCLEO-NFC07A1

量産中
MySTに保存する

Dynamic NFC/RFID tag IC expansion board based on ST25DV64KC for STM32 Nucleo

データブリーフのダウンロード
Order Direct
概要

製品概要

概要

概要

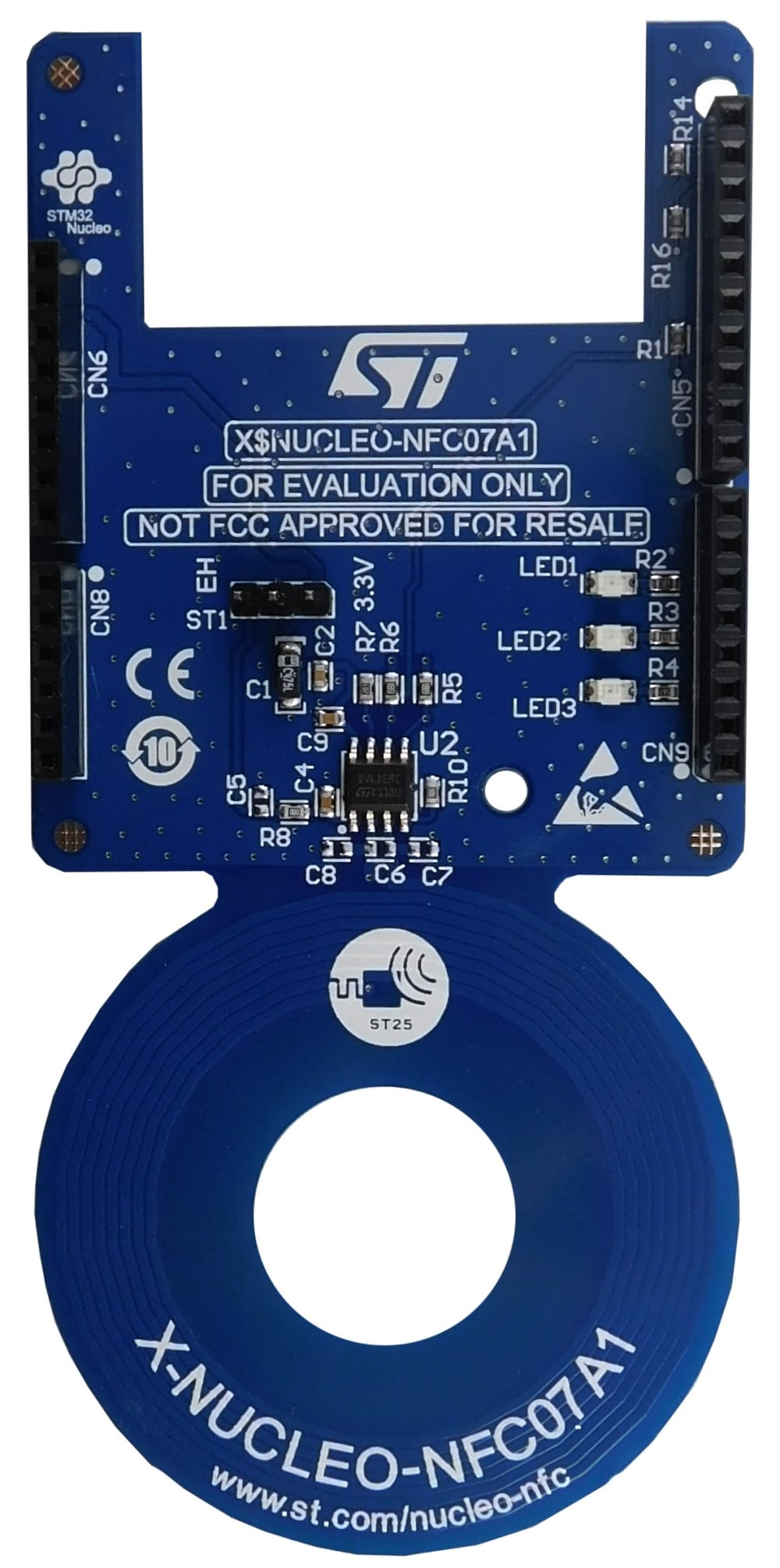

The X-NUCLEO-NFC07A1 dynamic NFC/RFID tag IC expansion board is based on the ST25DV64KC dynamic NFC/RFID tag IC with a 64-Kbit dual interface EEPROM and fast transfer mode feature. It can be powered through the STM32 Nucleo development board or directly through the received carrier electromagnetic field.

The X-NUCLEO-NFC07A1 expansion board is compatible with the Arduino UNO R3 connector pin assignment and can easily be plugged onto any STM32 Nucleo development board. You can stack other expansion boards to evaluate different devices that work together with the dynamic NFC tag.

The board also features a single-layer antenna with a diameter of 54 mm and copper etched on the PCB.

  • 特徴

    • ST25DV64KC dynamic NFC/RFID tag for STM32 Nucleo
    • Up to 4-Kbit memory with NDEF support
    • 54 mm diameter, single-layer circular antenna
    • Compatible with STM32 Nucleo boards
    • Equipped with Arduino UNO R3 connector
    • Self-powered or powered through the Arduino UNO R3 connectors
    • Three general-purpose LEDs
    • Scalable solution, capable of cascading multiple boards for larger systems
    • Free comprehensive development firmware library and example for ST25DV64KC, compatible with STM32Cube firmware
    • FCC and IC verified
    • RoHS compliant

おすすめ製品

ST25DV04KC

Dynamic NFC/RFID tag IC with 4-Kbit EEPROM, and fast transfer mode capability

ST25DV64KC

Dynamic NFC/RFID tag IC with 64-Kbit EEPROM, and fast transfer mode capability

ST25DV16KC

Dynamic NFC/RFID tag IC with 16-Kbit EEPROM, and fast transfer mode capability
