製品概要
概要

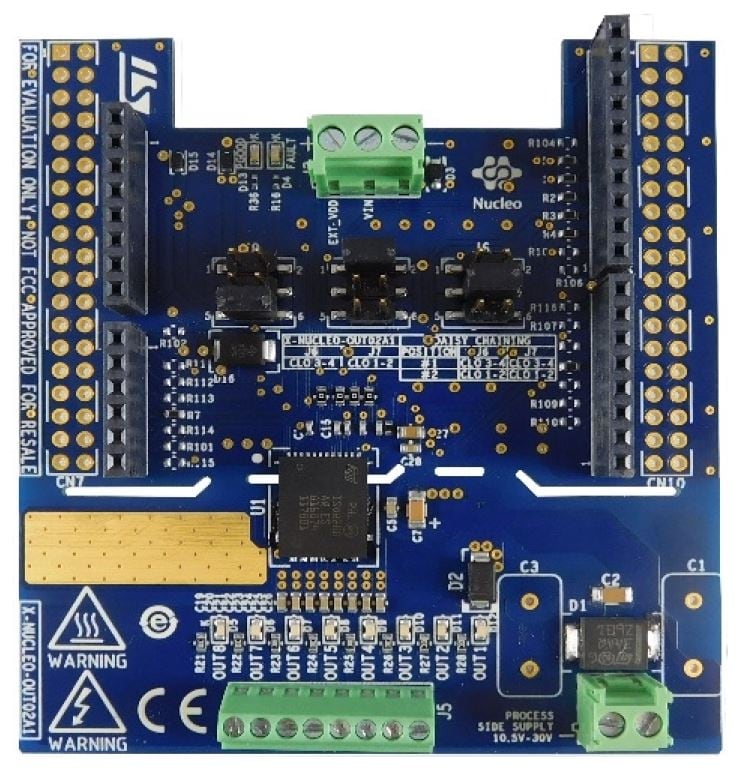

STM32 Nucleoボード向けの産業用デジタル出力拡張ボード「X-NUCLEO-OUT02A1」は、ISO8200AQガルバニック絶縁型オクタル･ハイサイド･スマート･パワー･ソリッド･ステート･リレーをベースにしています。
X-NUCLEO-OUT02A1は、8チャネル･デジタル出力モジュール開発に適した低コストで使いやすい機能拡張ボードです。ISO8200AQ通信および産業用負荷駆動特性を簡単に評価することができます。
また、Arduino™ UNO R3コネクタを介してNUCLEO-F401REまたはNUCLEO-F334R8開発ボードに接続することができ、
2枚のX-NUCLEO-OUT02A1を接続してデイジー･チェーン機能を有効にすることで、16チャネル･デジタル出力モジュールを評価することも可能です。
X-NUCLEO-OUT02A1は、SPIおよびGPIOピンを通じてSTM32マイクロコントローラとインタフェース接続します。また、Arduino™ UNO R3（デフォルト設定）およびST morpho（オプション、未実装）コネクタと互換性があります。
8つの入力と16の出力を備えた産業用PLC機能を追加することもできます。
-
特徴
- ISO8200AQの主な特徴:
- 4kVガルバニック絶縁内蔵
- ロジック側とプロセス側との間のRF通信によるノイズ耐性の最大化
- きわめて低い消費電力（RON(MAX) = 220mΩ）
- 誘導負荷のための高速ディケイ
- ロジック側の20MHz SPI I/F
- VCCパワー･グッド診断
- サーマル･シャットダウンと診断機能を活用した過負荷および過熱保護
- QFN-32L（9mm x 11mm x 1mm）パッケージ
- 10.5V～33Vの動作電圧範囲
- 出力オン / オフ･ステータス用の緑色LED（x8）
- プロセス電源パワー･グッド故障用の赤色LED
- 過負荷および過熱用の赤色LED
- 電源逆極性保護
- IEC61000-4-2 / IEC61000-4-3 / IEC61000-4-5によるEMC準拠
- STM32 Nucleoボードとの互換性
- Arduino™ UNO R3コネクタ装備
- CE認証済み
- RoHSおよび中国版RoHS準拠
- WEEE準拠
