製品概要
概要

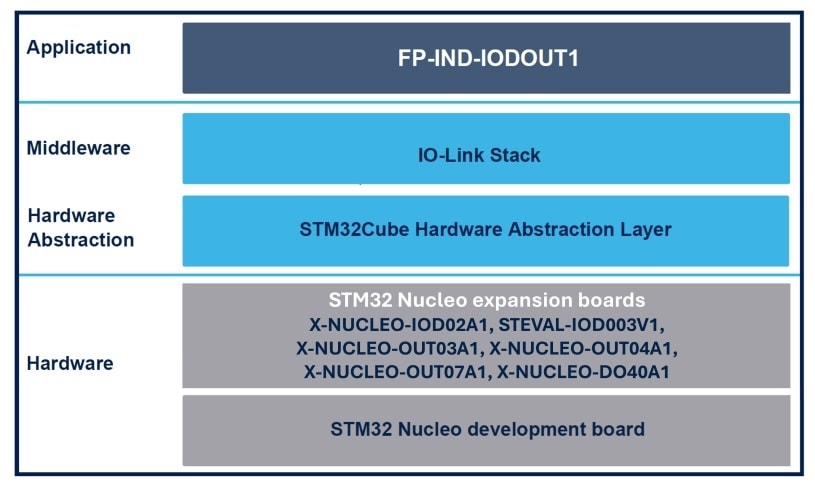

FP-IND-IODOUT1 is an STM32Cube function pack which lets you enable IO-Link communication between P-NUCLEO-IOD3A1 or P-NUCLEO-IOD04A1 or P-NUCLEO-IOD5A1 or P-NUCLEO-IOD7A1 kits and an IO-Link master through the L6362A transceiver mounted on the STEVAL-IOD003V1 or the L6364Q transceiver mounted on the X-NUCLEO-IOD02A1.
The function pack integrates an IO-Link demo-stack and the management of IPS2050H and IPS2050H-32, dual channel high side switches mounted on the X-NUCLEO-OUT03A1 and X-NUCLEO-OUT04A1 respectively, integrates also an IO-Link demo-stack and the management of IPS4260LM quad channel low side driver mounted on the X-NUCLEO-OUT07A1 and of IPS4140HQ quad channel high side driver mounted on the X-NUCLEO-DO40A1.
FP-IND-IODOUT1 also includes the IODD file to be uploaded to your IO-Link master.
The software included in the package can be used in three integrated development environments (IDEs): IAR, KEIL and STM32CubeIDE.
-
特徴
- Complete firmware to build IO-Link device applications for STM32L073RZ, STM32G071RB or STM32L452RE based boards
- Middleware libraries featuring IO-Link device mini-stack for L6364Q and L6362A transceiver ICs
- Drivers for L6364Q/L6362A transceivers and IPS2050H/IPS2050H-32/IPS4260LM/IPS4140HQ Intelligent Power Switches
- Ready-to-use binary for IO-Link device data transmission and IPS2050H/IPS2050H-32/IPS4260LM/IPS4140HQ control
- Easy portability across different MCU families, thanks to STM32Cube
- Free, user-friendly license terms
ソフトウェア入手
| 製品型番 | 概要 | 最新バージョン | サプライヤ | ECCN (EU) | ECCN (US) | ダウンロード |
|---|---|---|---|---|---|---|
| FP-IND-IODOUT1 | STM32Cube function pack for IO-Link applications controlling industrial IPS | 3.1.0 | ST | NEC | 5D992.c | x ライセンス契約 BY INSTALLING COPYING, DOWNLOADING, ACCESSING OR OTHERWISE USING THIS SOFTWARE PACKAGE OR ANY PART THEREOF (AND THE RELATED DOCUMENTATION) FROM STMICROELECTRONICS INTERNATIONAL N.V, SWISS BRANCH AND/OR ITS AFFILIATED COMPANIES (STMICROELECTRONICS), THE RECIPIENT, ON BEHALF OF HIMSELF OR HERSELF, OR ON BEHALF OF ANY ENTITY BY WHICH SUCH RECIPIENT IS EMPLOYED AND/OR ENGAGED AGREES TO BE BOUND BY THIS SOFTWARE PACKAGE LICENSE AGREEMENT. Under STMicroelectronics’ intellectual property rights and subject to applicable licensing terms for any third-party software incorporated in this software package and applicable Open Source Terms (as defined here below), the redistribution, reproduction and use in source and binary forms of the software package or any part thereof, with or without modification, are permitted provided that the following conditions are met:
