製品概要
概要

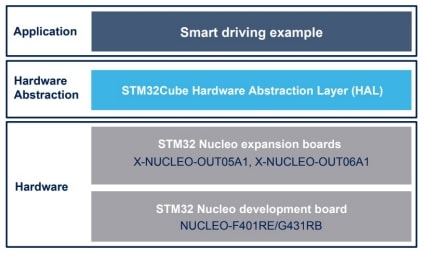

The X-CUBE-OUT5 software package expands the functionality provided by STM32Cube. It runs on the STM32 microcontroller and includes a driver controlling the IPS1025H or the IPS1025H-32 (single-channel high-side switches for industrial applications) mounted on X-NUCLEO-OUT05A1 or X-NUCLEO-OUT06A1 expansion boards.
This software allows controlling the output channels of the expansion boards when connected to a NUCLEO-F401RE or NUCLEO-G431RB development board.
It is possible to build a system with up to four stacked X-NUCLEO-OUT05A1 and/or X-NUCLEO-OUT06A1 boards to evaluate an up to four-channel digital output module.
Each board channel can be switched into steady state mode or in PWM mode.
In PWM mode the software allows you to program the expansion boards to be switched on and off using a specific frequency in the 0-100 Hz range (0.1 Hz resolution), and specific duty cycle in the 0-100% range (1% resolution).
The software included in the package can be used in three integrated development environments (IDE): IAR, KEIL and STM32CubeIDE.
-
特徴
- Software package to build applications for IPS1025H and IPS1025H-32
- High-side switch with extended diagnostics and smart driving for capacitive loads
- Ready-to-use firmware to easily evaluate the driving and diagnostic capabilities of IPS1025H and IPS1025H-32 with industrial loads
- Implementation on X-NUCLEO-OUT05A1 or X-NUCLEO-OUT06A1 expansion boards
- NUCLEO-F401RE or NUCLEO-G431RB development boards supported
- Driver library to control IPS1025H and IPS1025H-32
- GPIOs, PWMs and IRQs
- Fault/Diagnostics interrupt handling
- Easy portability across different MCU families, thanks to STM32Cube
- Free, user-friendly license terms
x
ソフトウェアをリクエスト
サーバへのリクエストに失敗しました。しばらくしてから再度お試しください
リクエストを送信しました。48時間以内にリクエストの承認メールをお送りします。メール内のリンクからリクエストされたソフトウェアをダウンロードしてください。
x
ファイルのダウンロードでお困りでしょうか。
ソフトウェア入手
| 製品型番 | 概要 | 最新バージョン | サプライヤ | ECCN (EU) | ECCN (US) | ダウンロード | |
|---|---|---|---|---|---|---|---|
| X-CUBE-OUT5 | Industrial digital output STM32Cube software expansion for X-NUCLEO-OUT05A1 and X-NUCLEO-OUT06A1 | 1.0.0 | ST | NEC | EAR99 | 最新バージョンを取得 |
