AEK-COM-GNSST31

NRND
MySTに保存する

GNSS evaluation board based on Teseo-LIV3F for SPC5 microcontrollers

データブリーフのダウンロード
概要

製品概要

概要

概要

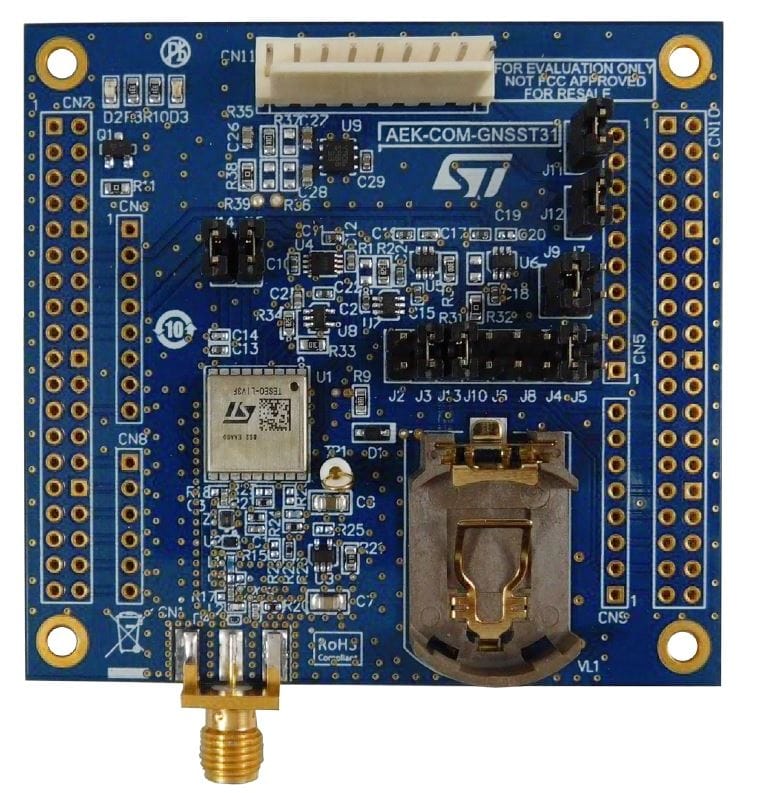

The AEK-COM-GNSST31 evaluation board is based on the certified Teseo-LIV3F global navigation satellite system (GNSS) module with embedded TeseoIII single die standalone positioning receiver IC.

The tiny, affordable, and easy-to use module guarantees superior accuracy and reduced time to first fix (TTFF) thanks to the on-board 26 MHz temperature compensated crystal oscillator (TCXO) and dedicated 32 KHz real-time clock (RTC) oscillator.

The evaluation package is used in conjunction with the X-CUBE-GNSS1 firmware to provide the necessary acquisition, tracking, navigation and data output functionality without external memory support.

The AEK-COM-GNSST31 evaluation board can be readily connected with an SPC5 MCU for automotive application development as part of the AutoDevKit™ initiative.

  • 特徴

    • Sensitivity: -162 dBm indoor (tracking mode)
    • Interfaces:
      • UART and I²C ports
      • Configurable digital I/O timepulse
      • EXTINT input for wakeup
    • NMEA protocol
    • Assisted GNSS:
      • Predictive autonomous
      • Predictive server-based
      • Real-time server-based
    • Compatible with SPC5
    • LNA and SAW filter on the RF path
    • SMA female antenna connector
    • Battery holder
    • Highly compact design: 70 x 65 mm
    • Operating supply voltage: 3.3 - 5 V
    • Ambient temperature: -40/+85 °C
    • Part of the AutoDevKit™ initiative
    • RoHS and WEEE compliant
