B-MOTOR-PMSMA1

量産中
MySTに保存する

50W DC motor and power adaptor for ZeST discovery kit

データブリーフのダウンロード
Order Direct
概要

製品概要

概要

概要

The B-MOTOR-PMSMA1 50 W motor and power adapter package is primarily intended to demonstrate the FOC control method in the framework of a low-cost motor control application. It is designed to operate with the ZeST motor control development platform. It includes a R57BLB50L2 motor from MOONS' and a GST90A24-TW AC power adapter from MEAN WELL.

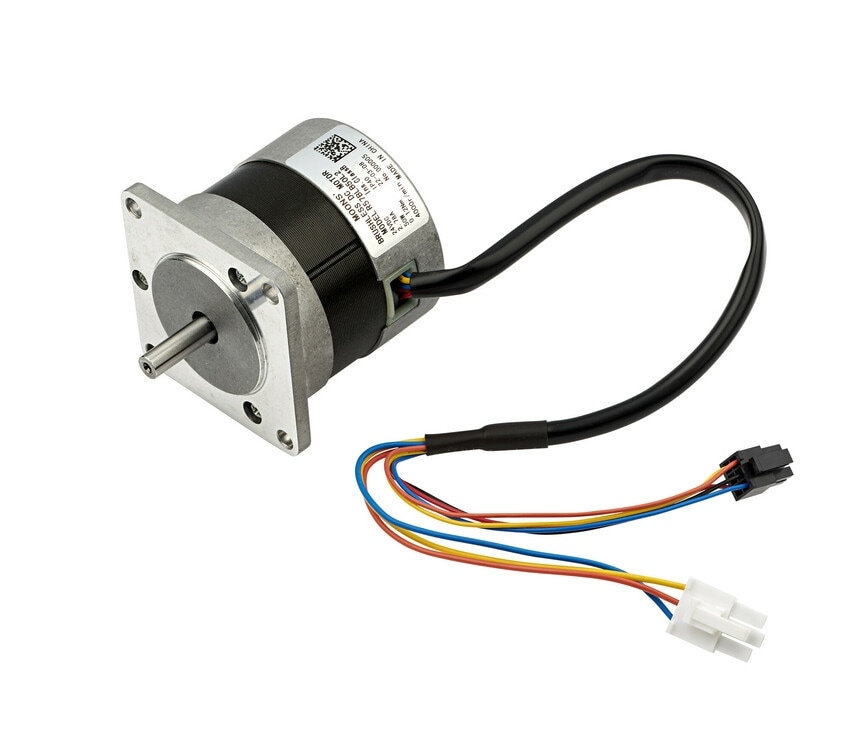

The R57BLB50L2 motor connects to the power board of the ZeST motor control development platform.

The GST90A24-TW power adapter is a 90 W AC/DC power adapter, which powers the power board. It can also supply the whole ZeST motor control development platform. It does not include an AC power cord.

The R57BLB50L2 motor and the GST90A24-TW power adapter are supplied by third parties not affiliated to STMicroelectronics. For complete and latest information, refer to the third-party web pages mentioned in the ordering information section of the data brief.

  • 特徴

    • Suitable for six-step and FOC control method
    • Motor-R57BLB50L2 from MOONS'
      • Small size and high power motor
      • 50 W output power
      • Maximum torque up to 0.39 N·m (55.2 ozf·in)
      • Wide range of speed control and smooth torque output
      • High speed stability
      • Low temperature rise, low noise, low vibration
      • Low positioning torque
    • Power adapter-GST90A24-TW from MEAN WELL
      • 90 W at 24 V dc single-output AC/DC adapter
      • Three‑pole AC inlet IEC320-C14, adopting an input range of 90 V ac to 264 V ac, 47 to 63 Hz
      • Built-in active PFC function
      • No load power consumption less than 0.15 W
      • LED indicator for power ON

おすすめ製品

B-G473E-ZEST1S

Discovery kit with STM32G473, Motor Controller Board

B-ZEST-ADAPT1

Adapter board for STM32 ZeST Motor control boards

STEVAL-LVLP01

Motor control discovery kit with STDRIVE101 three-phase gate driver and the STL8N10F7 power MOSFETs
