EVKITST87M01-1

量産中
MySTに保存する

ST87M01 evaluation kIT

データブリーフのダウンロード
概要

製品概要

概要

概要

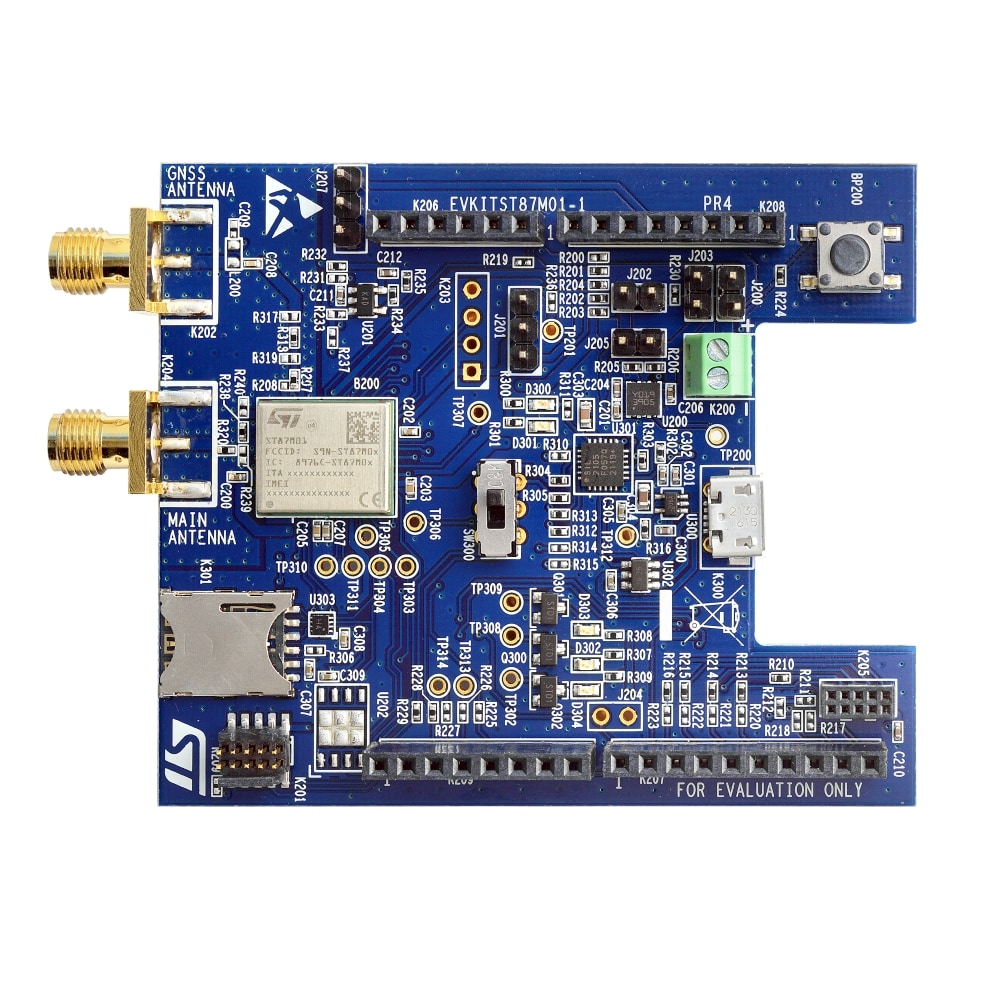

The EVKITST87M01-1 is an evaluation board for the ST87M01 NB-IoT module. It is designed as an X-NUCLEO Shield form factor with an Arduino® compatible connector.

Besides, two HOST connections to ST87M01 are possible: a PC or associate board.

  • 特徴

    • KIT composition
      • EVKITST87M01-1 board
      • Micro-B USB cable
      • LTE antenna
      • GNSS antenna
    • Board connectors
      • USB connector
      • SMA RF antenna connector
      • SMA GNSS antenna connector
      • External power supply connector
      • Arduino connectors
      • HST (Trace) connector
      • Nano SIM card holder
      • JTAG CM4
    • 3 power supply connection options
      • USB connector
      • External connector
      • Arduino connector
    • Interfaces
      • UART for AT commands
      • 2 x ADC
      • GPIOs
    • LEDs
      • 3 module activity LEDs
      • 2 UART activity LEDs
    • ボタン
      • 1 reset push-button
