EVSPIN32G06Q1S3

量産中
MySTに保存する

3-phase inverter based on STSPIN32G0601Q with 3-shunt topology

データブリーフのダウンロード
Order Direct
概要

製品概要

概要

概要

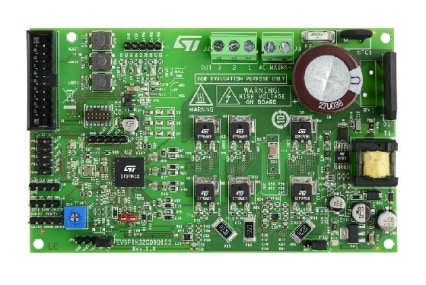

The EVSPIN32G06Q1S3 board is a 3-phase complete inverter based on the STSPIN32G0601 controller, which embeds a 3‑phase 600 V gate driver and a Cortex®-M0+ STM32 MCU. The power stage features STGD6M65DF2 IGBTs, but can be populated with any IGBT or Power MOSFET in DPAK or powerFLAT 8x8 HV package. The board has a three-shunt sensing topology, and is intended for Field-Oriented Control (FOC) algorithm, in either sensored or sensorless mode. This makes it especially suited to drive permanent magnet synchronous motors (PMSMs). The evaluation board is compatible with a wide range input voltage from 35 VAC (50 VDC) to 280 VAC (400 VDC), and includes a power supply stage with the VIPER06XS in flyback configuration to generate +15 V and +3.3 V supply voltage required by the application. Debug and configuration of firmware can be performed with standard STM32 tools through the STLINK debugger. SWD and UART TX‑RX connectors are also available.

  • 特徴

    • Input voltage from 35 VAC (50 VDC) to 280 VAC (400 VDC)
    • Suitable for ~250 W applications, 1 ARMS phase current
    • STGD6M65DF2 IGBTs power stage featuring:
      • V(BR)CES = 650 V
      • VCE(sat) = 1.55 V @ IC = 6 A
    • Overcurrent threshold set to 3.5 Apeak
    • Dual footprint for IGBT/MOSFET package:
      • DPAK or PowerFlat 8x8 HV
    • Three-shunt current sensing, suitable for:
      • Sensored or sensorless three-shunt vector (FOC) algorithm
    • Smart shutdown overcurrent protection
    • Digital Hall sensors and encoder input
    • Bus voltage sensing
    • 15 V VCC and 3.3 V VDD supplies
    • External connection through STLINK-V3SET or STLINK/V2 debugger/programmer
    • Easy user interface with buttons and trimmer
    • RoHS compliant
