SR5E1-EVBE7000P

量産中
MySTに保存する

Standalone evaluation board for SR5E1 in QFP176

データブリーフのダウンロード
Order Direct
概要

製品概要

概要

概要

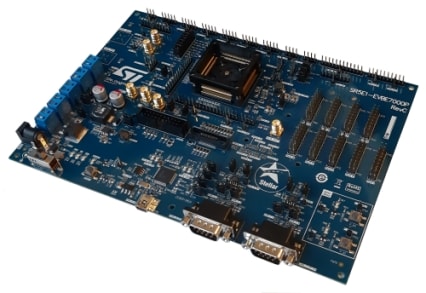

The SR5E1-EVBE7000P is the evaluation board of the SR5E1E7 Stellar E1 automotive MCU in a QFP176 package enabling the access to all the functionalities of the product.

Being based on socket, it can be the best solution to start prototyping any automotive application, such as OBC, DCDC, motor control and many more.

The board provides high-resolution timers, DAR, SAR-ADC and SD-ADC connectors to easily test control loop applications exploiting the efficiency of the Stellar E1 MCU.

The board provides FDCAN channels, LIN, UART, I²C and SPI standard communication interface, as well as LED and buttons for user controls.

ST’s StellarStudio, an Eclipse-based integrated development environment, provides a comprehensive framework to design, build, and deploy embedded applications. StellarStudio is available for free download from www.st.com and includes multiple free application examples ready to use on the SR5E1-EVBEx000P board.

  • 特徴

    • Socket based evaluation board for SR5E1E7 Stellar E1 in a QFP176 package automotive MCU
    • High-resolution timers connector
    • DAC, SAR-AD and SD-ADC connectors
    • CAN-FD ports with DB9 connector
    • GPIO pin arrays
    • LIN, UART, I²C and SPI capabilities

おすすめ製品

SR5E1E7

SR5 E1 line of Stellar electrification MCUs, 32-bit Arm Cortex-M7 automotive MCU 2x cores, 2 MB Flash, rich analog, high-resolution timer, HSM, ASIL-D

StellarStudioAI

Artificial Intelligence (AI) plug-in for StellarStudio development environment

StellarLINK

StellarLINK in-circuit debugger/programmer for Stellar and SPC5 automotive microcontrollers
