STEVAL-MIC001V1

量産中
MySTに保存する

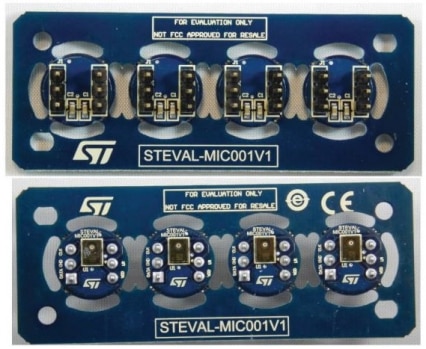

Microphone coupon board based on the MP34DT05-A digital MEMS

データブリーフのダウンロード
Order Direct
概要

製品概要

概要

概要

The STEVAL-MIC001V1 daughterboard is designed to be used in conjunction with the X-NUCLEO-CCA02M1 expansion board; it is able to export the four additional PDMs for any user application requirement (NBW algorithm detection).

  • 特徴

    • 4 x MP34DT05-A top port digital MEMS microphones
    • Daughterboard to be used with X-NUCLEO-CCA02M1
    • Vsupply from 1.6 to 3.6 V
    • 122.5 dBSPL acoustic overload point
    • Omnidirectional sensitivity
    • PDM single-bit output
    • 64 dB of SNR
    • Sensitivity -26 dBFS ±3 dB
    • RoHS compliant

おすすめ製品

X-NUCLEO-CCA02M2

Digital MEMS microphone expansion board based on MP34DT06J for STM32 Nucleo
