製品概要
概要

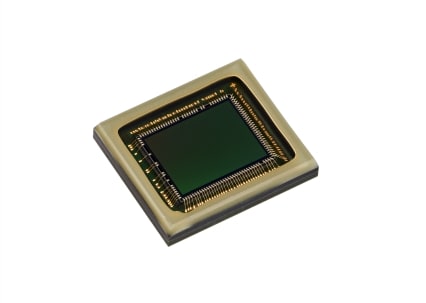

The VB1740 and VD1740 are 2.7 MP image sensors with both rolling and global shutter modes.
In rolling shutter mode, the VB1740 and VD1740 produce a single HDR color frame output through the MIPI CSI-2 interface. This is achieved by combining a short and long exposure. In addition, the user can activate a function that converts the RGB NIR pattern to an RGGB format. Such a format is compatible with any standard automotive ECU (electronic control unit).
In global shutter mode, the RGB pixels upscale the NIR image to full resolution. This innovative use of the NIR information is achieved thanks to the independent exposition of the NIR and RGB pixels.
The sensor captures up to 60 frames per second in a 1920 x 1432 resolution format. The device is fully configurable through the I²C serial interface. It also provides flexible frame-to-frame configuration changes via the use of programmable contexts. Up to four contexts can be sequenced in a versatile loop of up to 32 elements.
The sensor is designed as a SEOOC (safety element out of context). It is compliant with ISO26262 standards and ASIL-B safety levels.
The VB1740 and VD1740 are designed with a full set of cybersecurity features.
-
特徴
- Automotive compliancy
- AEC-Q100 grade 2 ongoing
- Operating junction temperature: -40°C to 125°C
- ISO26262 compliant to support ASIL B system integration
- Cybersecurity features
- Hybrid 2.7 MP global and rolling shutter features
- 3D stacked sensor 40 nm/65 nm
- 2.7 MP sensor (1920 x 1432)
- 2.25 µm x 2.25 µm BSI (backside illuminated) pixel
- RGB/NIR pixel technology with RGB NIR 4x4 pattern
- Image array size: 4.3 mm x 3.2 mm
- Optical format 1/3 inch
- Bare die or OBGA package
- Innovative features
- Dual exposure controls (RGB and IR)
- On-chip bayerization ISP (image signal processor)
- On-chip color HDR (high dynamic range) merges
- On-chip NIR smart upscale
- 4 programmable contexts, in a versatile sequence, with up to 32 elements
- インターフェイス
- Quad lane transmitter MIPI CSI-2 up to 1.5 Gbps per lane (MIPI CSI-2 copyright© 2005-2010 MIPI alliance, inc. standard for camera serial interface 2 (CSI-2) version 1.0)
- 6 programmable GPIOs (general-purpose input/outputs) to control the LED (light-emitting diode)
- Output synchronized with sensor integration periods
- PWM (pulse-width modulation) control
- Fast mode plus I²C control interface
- Unique imaging performance
- Peak quantum efficiency 25% @ 940 nm
- HDR linear dynamic range up to 100 dB in rolling shutter mode
- Up to 60 frames per second at full resolution
- Ultralow noise
- Automotive compliancy
EDAシンボル / フットプリント / 3Dモデル
STMicroelectronics - VB1740
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
EDAシンボル
フットプリント
3Dモデル
品質 & 信頼性
| 製品型番 | マーケティング･ステータス | パッケージ | グレード | RoHSコンプライアンスグレード | 材料宣誓書** |
|---|---|---|---|---|---|
| VB1740AAJX | 開発中 | OBGA74 8.2X9.6X2.09 | Automotive Safety | Ecopack2 | |
VB1740AAJX
Package:
OBGA74 8.2X9.6X2.09Material Declaration**:
(**) st.comで提供している材料宣誓書は、パッケージ･ファミリ内で最も一般的に使用されているパッケージに基づく汎用ドキュメントの場合があります。そのため、特定の製品では100%正確ではない可能性があります。特定の製品情報については、セールスサポートまでお問い合わせください
サンプル & 購入
| 製品型番 | 製品ステータス | Budgetary Price (US$)*/Qty | STから購入 | Order from distributors | パッケージ | 梱包タイプ | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 最小 | 最大 | |||||||||||||
| VB1740AAJX | | | distributors 販売代理店に在庫がない場合は、STのセールス･オフィスまでお問い合わせください | |||||||||||
VB1740AAJX 開発中
販売代理店に在庫がない場合は、STのセールス･オフィスまでお問い合わせください
（*）概算用の参考価格（US$）です。現地通貨でのお見積りについては、STのセールス･オフィスまたは販売代理店までお問い合わせください。
