製品概要
主な利点
Capture crystal-clear images
Advanced 2.61µm global shutter fully encapsulated pixels providing exceptional sensitivity and sharpness from visible to near-infrared (850nm, 940nm).
Compact and power efficient
Small-size CMOS sensor leveraging 3D-stacking technology, perfect for designing ergonomic, battery-powered camera devices.
One design fits all
Monochrome sensor also available in RGB and RGB-IR versions with shared pixel, controls, MIPI CSI-2 output, and functionalities to streamline development and integration.
概要
The VD56G3 is the first-release of a series of multiple-image sensors developed by STMicroelectronics for professional and consumer vision applications. Leveraging state-of-the-art technologies developed by STMicroelectronics own foundry, the sensor provides outstanding performance in visible and near infrared regions. With its clever design and complete toolbox of on-chip functions, it is the ideal solution for the design of tomorrow’s smart and optimized systems.
-
特徴
- Cutting-edge performance of ST proprietary pixel:
- BSI structure provides superior QE, MTF, and angular response.
- Full DTI technology further increases sensitivity and sharpness.
- Benefits both visible and NIR imaging (850 nm and 940 nm).
- Proprietary technology from ST foundry in France, ensuring safe supply.
- Easy integration into your system:

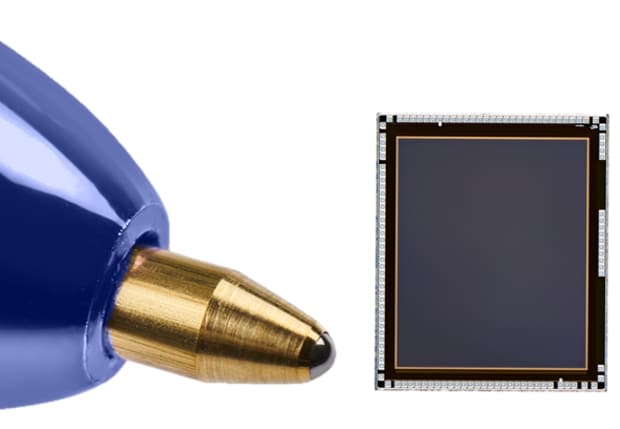

- Ultracompact die with a centered design to minimize your system size.
- Small optical format: 4.6 mm (1/4'') at full resolution and 3.7 mm (1/5'') with 1 MP crop.
- Low power, ideal for battery-powered devices.
- Robust design and image quality in temperature.
- A complete toolbox of in-sensor features:
- Stunning images with in-sensor autoexposure and various corrections.
- Multiple features to optimize data size and frame rates such as crop, binning, and programmable sequences.
- 8 GPIOs enabling extra controls such as trigger or LED synchronization.
- Seamless connection to embedded processing platforms:
- 1 or 2 lanes MIPI CSI-2 interface enabling straight connection to entry-level cost-effective processing platforms.
- Start immediately your development with our turnkey sensor boards, modules, and drivers for the VD56G3 image sensor.
- The VD56G3 monochrome image sensor is also available in color RGB (VD66GZ) and RGB-NIR versions (VD16GZ).
- Cutting-edge performance of ST proprietary pixel:
回路ダイアグラム
おすすめ製品
推奨コンテンツ
Recommended Tools & Software
All tools & software
EDAシンボル / フットプリント / 3Dモデル
STマイクロエレクトロニクス - VD56G3
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
EDAシンボル
フットプリント
3Dモデル
品質 & 信頼性
| 製品型番 | マーケティング･ステータス | パッケージ | グレード | RoHSコンプライアンスグレード | Longevity Commitment | Longevity Starting Date | 材料宣誓書** |
|---|---|---|---|---|---|---|---|
| VD56G3CCA/RW | 量産中 | DIE | インダストリアル | N/A | 10 | 2024-01-01T00:00:00.000+01:00 |
(**) st.comで提供している材料宣誓書は、パッケージ･ファミリ内で最も一般的に使用されているパッケージに基づく汎用ドキュメントの場合があります。そのため、特定の製品では100%正確ではない可能性があります。特定の製品情報については、セールスサポートまでお問い合わせください
サンプル & 購入
| 製品型番 | 製品ステータス | Budgetary Price (US$)*/Qty | STから購入 | Order from distributors | パッケージ | 梱包タイプ | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 最小 | 最大 | |||||||||||||
| VD56G3CCA/RW | 量産中 | | distributors 販売代理店に在庫がない場合は、STのセールス･オフィスまでお問い合わせください | DIE | Tape Mounted | FRANCE | EAR99 | NEC | -30 | 85 | ||||
VD56G3CCA/RW 量産中
販売代理店に在庫がない場合は、STのセールス･オフィスまでお問い合わせください
（*）概算用の参考価格（US$）です。現地通貨でのお見積りについては、STのセールス･オフィスまたは販売代理店までお問い合わせください。
